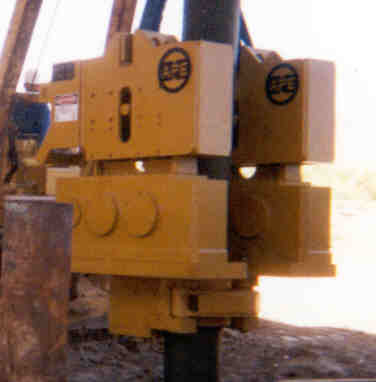

Model 100 Tandem Vibratory Driver/Extractor with Model 330 Power Unit
Specifications

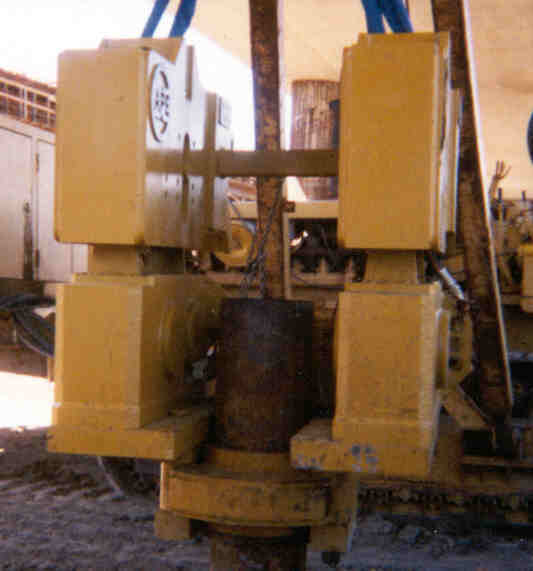

• Pile fits in center of two hammers.
• Clamp fits around sides of pile to: reduce field splices allow maximum pile length
• Clamp opens just like a pile gate
• Can operate from forklift, backhoe or standard crane

This unit is made for driving or extracting pipe piles 16 inches in diameter in low headroom situations. The standard clamp can be modified to fit H-beams and other types of piles.

APE engineers can adapt this unit to fit larger size piles. However, a new bottom plate and jack shaft would be required. For more information please contact APE at 800-248-8498

Note:
Extra hose length available in 15 meter (50 foot) sections.
Suspended weight includes 1/2 of the hose bundle.
