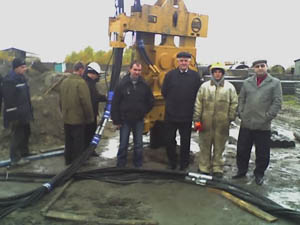

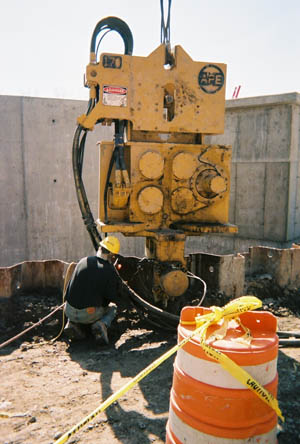

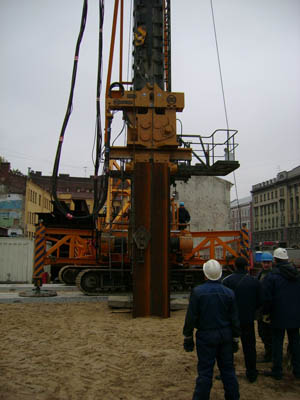

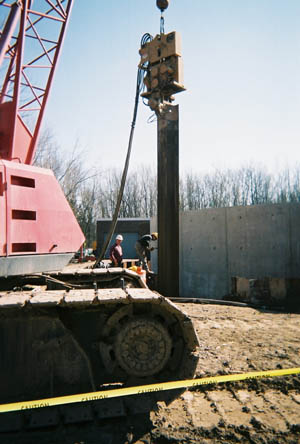

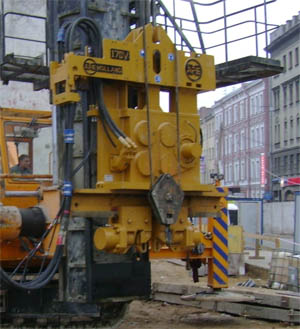

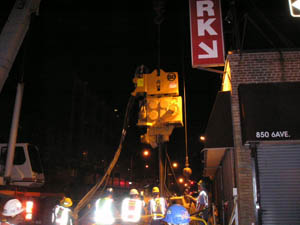

Model 170VM (Variable Moment)
with Model 375 Power Unit

Rifle-bored top plate delivers oil to motors without using hoses
Patented one piece helical gear/eccentric eliminates gearbox failures
80% less hoses for easier and less expensive maintenance
Giant double roller spherical bearings for super long life
Center safety pin shows the line load on pile and crane
Over double the line pull of any hammer in its class
Jaws are cast from ASTM 148 and heat treated for long life.
Rubber elastomers are specially made to prevent shock to the crane boom. APE's elastomers are the largest in the industry.

Vibro Specifications:

Eccentric moment (variable)	0-2250 in-lbs
Frequency (variable)	1750-1950 vpm
Driving Force @ 1750 vpm	89 metric tons (98 US Tons)
Driving Force @ 1950 vpm	110 metric tons (121 US Tons)
Vibrating Mass with standard clamp	6400 lbs.
Amplitude with standard clamp	0 to .70 inches
Pile cylinder force	125 tons
Extraction line pull	61 US tons
Suspended weight (without clamp)	7600 lbs
Suspended weight (with standard sheet clamp)	8950 lbs.
Length	69 inches
Width at throat	14 inches
Width at widest point	23 inches
Height without clamp	77 inches
Height with standard clamp including guide	100 inches
Hydraulic hose length (standard)	30 m (100 ft)

Power Unit Specifications: (Model 375)

Engine Type	Caterpillar C9 ACERT Tier III Certified
Power (Max)	280 kW / 375 hp
Operating Speed (No Load)	800 to 2,100 rpm
Drive Pressure (Max)	326 bar (4,800 psi)
Drive Flow (Variable)	0-513 lpm (0-135 gpm)
Clamp pressure (Max)	312 bar (4,600 psi)
Clamp Flow	41 lpm (10 gpm)
Weight	5,714 kg (12,600 lbs)
Length	279 cm (110 in)
Width	168 cm (66 in)
Height	172 cm (68 in)
Hydraulic Reservoir	1.330 liters (350 gal)
Fuel Tank	570 liters (150 gal)
