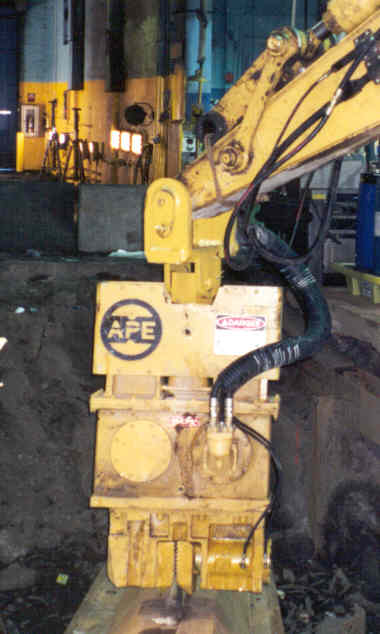

Model 20 Vibratory Driver/Extractor with Model 80 Power Unit
Specifications


  • The model 20 is designed to operate off any backhoe
  • Patented one piece helical gear/eccentric eliminates gearbox failures caused by broken pins, keys, bolts or splines found in all other vibro gearboxes
  • Perfect for driving and extracting plastic and light weight sheets or piles
  • High strength clamp ensures maximum grip without damaging sheets

Advance, profit generating features that are years ahead of the competition:
  • Simple manual hand control valves for clamp and drive functions
  • Eccentric moment can be increased to 1300 inch pounds
  • The next step from our smaller Model 3 plastic sheet pile vibro
  • Uses the same jaws as our larger models
  • Power unit is a simple open loop design with forward and reverse flow for drill work
  • Vibro is perfect size weight and dimensions for driving wick drains


Vibro Specifications:
Eccentric moment 102 Nm / 900 in-lbs
Frequency (variable) 0-1850 vpm
Height with suppressor & 50 clamp 51 cm / 20 in
Width 35 mm / 14 in
Length 99 cm / 39 in
Suspended weight (with universal sheet clamp) 1315 kg / 2900 lbs
Maximum line pull 20 US tons
Centrifugal force 38 US tons
Amplitude 25.4 mm / 1 in
*Eccentric moment can be increased up to 1300 inch pounds for the Model 20. Larger eccentic moments can greatly increase the performance, but may require more horsepower or a larger hydraulic motor to increase hydraulic torque.
*If you desire a faster speed, APE can reduce the size of your hydraulic motor. APE consultants need to know your hydraulic flow rate and maximum hydraulic pressure. With this information, we can tell you how much eccentric moment you can swing.

Power Unit Specifications: (Model 80)
Engine Cummins Diesel 3.9 Liter
Maximum Power 76 hp (57 KW)
Maximum Drive Pressure 3000 psi (206 bar)
Clamp Pressure 3000 psi (206 bar)
Clamp Pump Flow 6.5 gpm (27 lpm)
Weight 5000 lbs (2268 kg)
Length 69 in (175 cm)
Width 39 in (99 cm)
Height 82 in (208 cm)
Fuel Tank Capacity 30 gal (133 liters)
Hydraulic Tank Capacity 200 gl (757 liters
