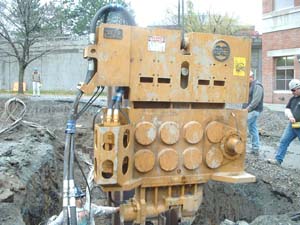

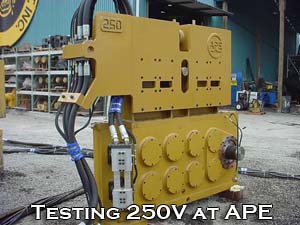

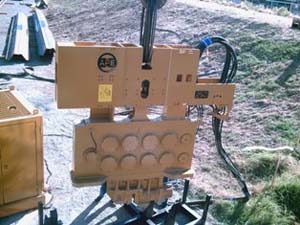

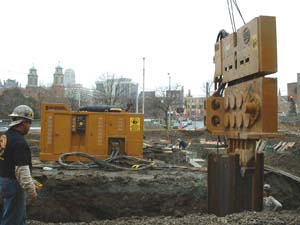

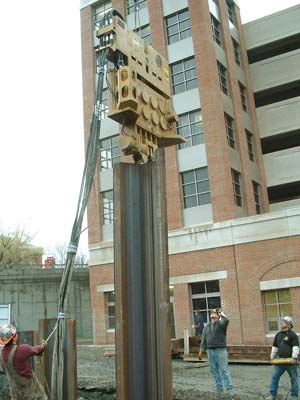

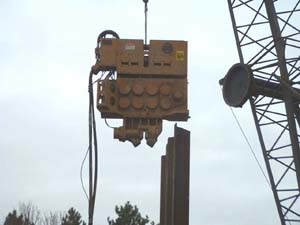

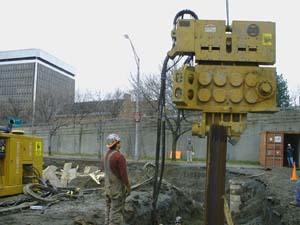

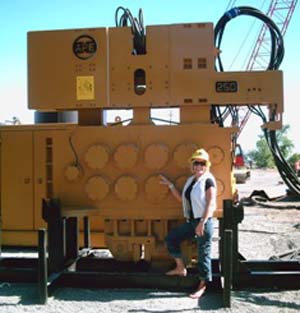

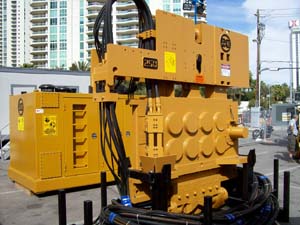

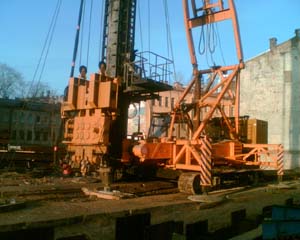

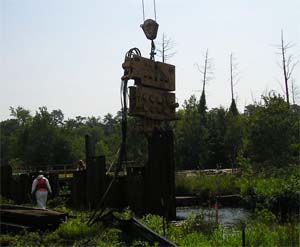

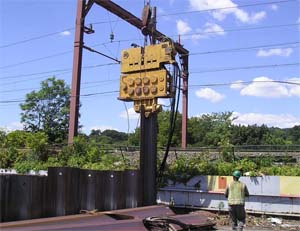

Model 250VM (Variable Moment)
with Model 700 Power Unit

Rifle-bored top plate delivers oil to motors without using hoses
Patented one piece helical gear/eccentric eliminates gearbox failures
80% less hoses for easier and less expensive maintenance
Giant double roller spherical bearings for super long life
Center safety pin shows the line load on pile and crane
Over double the line pull of any hammer in its class
Jaws are cast from ASTM 148 and heat treated for long life.
Rubber elastomers are specially made to prevent shock to the crane boom. APE's elastomers are the largest in the industry.

Vibro Specifications:

Eccentric moment (variable)	0 to 5,184 kg-cm (4,500 in-lbs)
Frequency (variable)	1,750 cpm (1,950 Optional)
Driving force @ 1,750 vpm	178 metric tons (196 US tons)
Driving force @ 1,950 vpm	220 metric tons (243 US tons)
Amplitude without attachment	0-32 mm (1.25 in)
Maximum line pull	1,335 kN (150 USt)
Suspended Weight (w/ sheet clamp & 23m(75') hose)	7,936 kg (17,500 lbs)
Dynamic weight (w/sheet clamp)	4,365 kg (9,625 lbs)
Length	318 cm (125 in)
Width throat	35 cm (14 in)
Width at widest point	43 cm (17 in)
Height	254 cm (100 in)
Hydraulic hose length (standard)	46 meters (150 ft)
50' of Hydraulic hose weight with oil	907 kg (2,000 lbs)

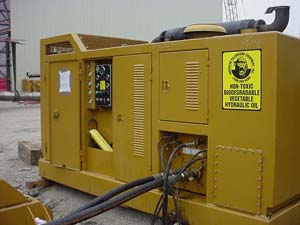

Power Unit Specifications: (Model 700)

(Specs and Data Updated 8/1/2008)

Downloads:

Full Manual PDF Size: 7.27 MB
