Product Types / Vibratory Driver & Extractors / Model 400 Tandem

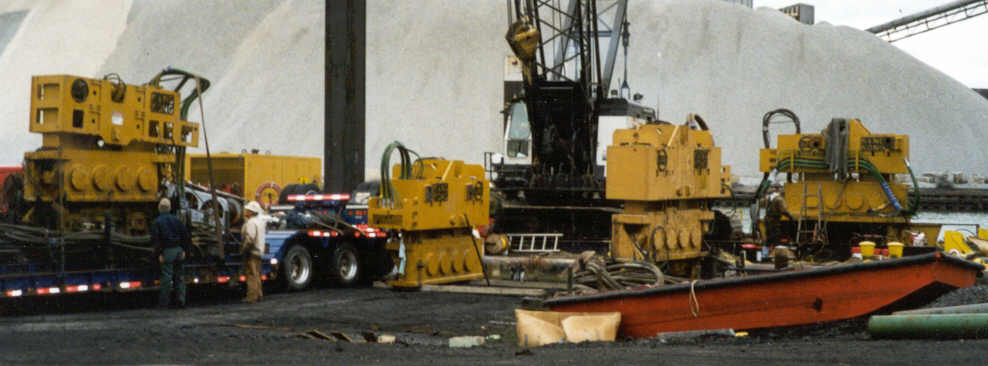

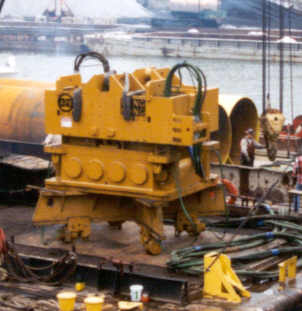

Model 400 Tandem Vibratory Driver/Extractor with two Model 1050 Power Units
Specifications


  • 30 mm (over one inch) of amplitude with 50% less internal parts
  • Patented one piece helical gear/eccentric eliminates gearbox failures caused by broken pins, keys, bolts or splines found in all other vibro gearboxes
  • Giant double roller spherical bearings for super long life
  • No vibro can out drive KING KONG

The Model 400 Tandem is powered by two CAT 3412E 990 HP power units. One pendant controls both power units. Pendant controls engine speed, clamp on/off, and start/stop functions. Power units are equipped with Mobil 224 vegetable hydraulic oil.

The hammer can be shipped in one piece, however the caisson beam and clamps must be assembled on the job. The two power units have one short hose that connects the two hydraulic tanks together. For more details on this unit please consult the factory.
