        Product Types  /   Vibratory Driver & Extractors   /   Model 50

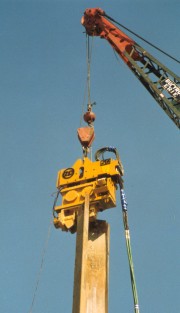

Model 50 Vibratory Driver/Extractor
Specifications



The APE Model 50 Vibratory Pile Driver/Extractor is the largest, most powerful machine in it's class of small vibros. It has 30% eccentric moment that its competitiors thanks to heavy metal enhanced eccentrics. The Model 50 also incorporates the patented one peice gear/eccentric design which eliminates bolts, keys, or splines inside the gearbox. The gears are helical and the bearings are spherical thus allowing the Model 50 to drive extreme batter piles without bearing damage. The gearbox features a machined o-ring groove to seal the top plate to allow the Model 50 to operate under water with no modifications. The suspended weight is only 2800 kg (4500 lbs.) It is powered by a 194 kW (260 HP) engine power unit warranteed for five years or 10,000 engine hours. The power unit comes with every possible option including forward and reverse hydraulic flow so you can operate a drill or other hydraulic equipment including APE hydraulic impact hammers. All APE standard clamp attachments for wood piles, concrete piles, steel and plastic sheet piles, and many more are readily available for APE. The APE Mdoel 50 comes with the longest, strongest warranty offered in the pile driving industry.

  • Motors are recessed out of harm's way for greater protection
  • Patented one piece helical gear/eccentric eliminates gearbox failures caused by broken pins, keys, bolts or splines found in all other vibro gearboxes
  • Giant double roller spherical bearings for super long life
  • Center safety pin shows the line load on pile and crane

Advance, profit generating features that are years ahead of the competition:
  • Can mount and operate off backhoe for situations where crane use is not preferable.
  • Center safety pin shows pile crew and crane operator how much line pull is on pile and crane.
  • One piece helical gear/eccentric eliminates keyways, pins, splines, and bolts inside the gearbox.
  • Heavy metal enhanced eccentric design reduces internal parts by up to 75% while increasing dynamic force.
  • Giant spherical bearings allow for batter operations without damage and reduce heat for extremely long life.
  • Computer designed gearbox is perfectly balanced with lowest center of gravity on the market.
  • Heavy duty clamp cylinder is machined from one piece of solid steel to eliminate o-rings and bolt-on guards.
  • Power unit comes standard with tool kit and dual controls on pendant and control panel.
  • Very simple open loop hydraulic system with highest quality valves with lighted indicators.
  • Variable flow in both directions for use on drills, winches, hydraulic hammers and other attachments.
  • Oversized radiator and hydraulic oil cooler with proven performance in the heat of Saudi Arabia.

As an attachment for excavators for the purpose of driving and extracting sheet piles, soil compaction, asphalt cutting, pipe piles, pin piles, etc.
