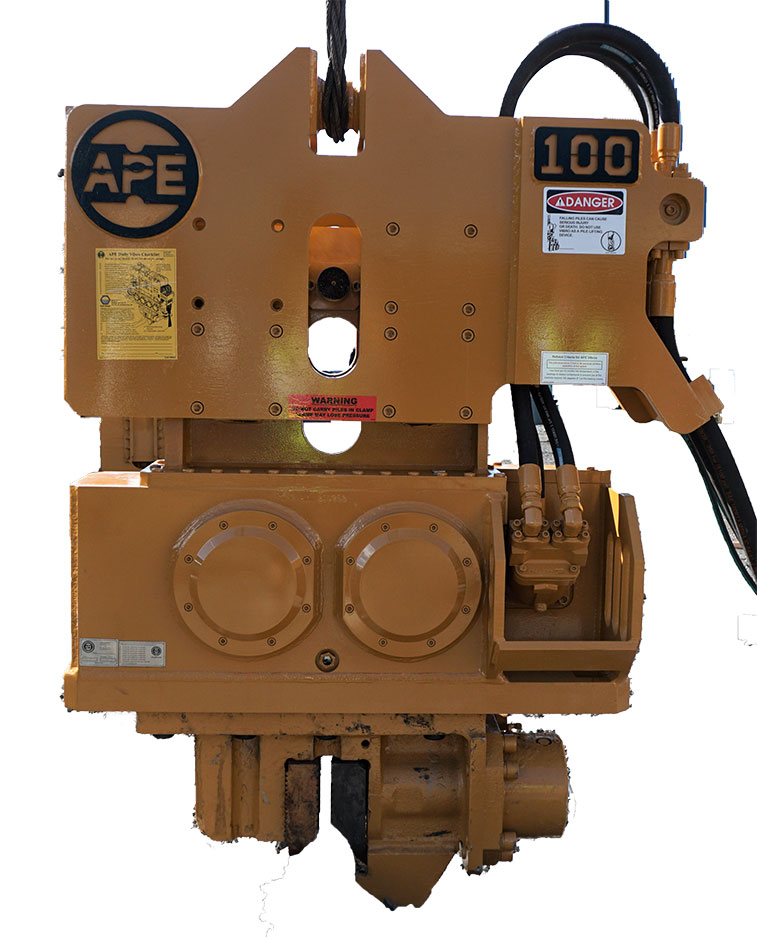

APE Model 100 Vibratory Driver/Extractor
SPECIFICATIONS DATA
Eccentric Moment 25 kgm (2,200 in-lbs)
Frequency (variable) 400-1670 vpm
Driving Force 783 kN (88 US tons)
Amplitude (free hanging with sheet clamp) 25.4 cm (1 inch)
Maximum line pull 534 kN / 60 US tons
Suspended Weight (with universal clamp) 3583 kg (7,900 lbs)
Vibrating weight (with no clamp) 1451 kg (3,200 lbs)
Weight of standard sheet clamp 544 kg (1,200 lbs)
Length 213 cm (84 inches)
Width throat- standard 36 cm (16 inches)
Width at widest point 54 cm (21 inches)
Height with clamp 239 cm (94 inches)
Hydraulic Hose Length (standard) 30 m (100 feet)

APE Model 275 Power Unit

SPECIFICATIONS DATA
Engine Caterpillar C7 ACERT Tier III
Power 275 hp (205 kW)
Fuel Consumption @ 2100 rpm 13.8 gal/hr (52.4 liters/hr)
Fuel Consumption @ 1600 rpm 12.5 gal/hr (47.4 liters/hr)
Fuel Capacity 85 gal (323 liters)
Operating Speed 600 to 2,100 rpm
Drive Pressure 4,800 psi (326 bar)
Drive Flow (Variable) 0 to 74 gpm (300 lpm)
Clamp Pressure 4,500 psi (306 bar)
Clamp Flow 6 gpm (28 lpm)
Weight 6,800 lbs (3,084 kg)
Length 102 in (259 cm)
Width 50 in (127 cm)
Height 60 in (152 cm)


3 | 6 | 15 | 20 | 50 | 100 | 150 | 200 | 200-6 | 300 | 400 | 417 | 4400 | 600 | 100 Tandem | 200 Tandem | 400 Tandem | 120VM | 170VM | 250VM
150 Low Headroom | 150T | 200T | 200-6T | 200-6T2 | 200-6T3 | 15E | 20E | 50E | 100E | 33X | 64X

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
