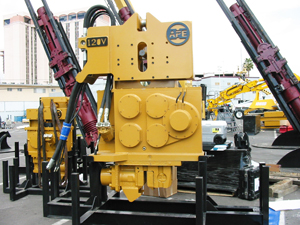

APE Model 120VM Vibratory Driver/Extractor
SPECIFICATIONS DATA
Eccentric Moment 1,600 in-lbs (18 kgm)
Frequency 0 to 2,300 vpm
Driving Force 0 to 120 US tons (0 to 107 tons)
Amplitude 0.15 to 0.75 in (7 to 22 mm)
Max Line Pull 61 US tons (54.5 tons)
Suspended Weight without Clamp 7,500 lbs (3,402 kg)
Length 69 in (175.3 cm)
Width at Throat 14 in (36 cm)
Width at Widest Point 23 in (43 cm)
Height without Clamp 77 in (195 cm)
Height w/ Clamp and Guides 100 in (254 cm)
Hydraulic Hose Length 100 ft (30 m)
Hydraulic Hose Weight 1,000 lbs (454 kg)

APE Model 375 Power Unit

SPECIFICATIONS DATA
Engine Caterpillar C9 ACERT Tier III
Power (Max) 375 hp (280 kW)
Operating Speed (No Load) 800 to 2,100 rpm
Drive Pressure (Max) 4,800 psi (326 bar)
Drive Flow (Variable) 0 to 135 gpm (513 lpm)
Clamp Pressure (Max) 4,600 psi (312 bar)
Clamp Flow 10 gpm (41 lpm)
Weight 12,600 lbs (5,714 kg)
Length 110 in (279 cm)
Width 66 in (168 cm)
Height 68 in (172 cm)
Hydraulic Reservoir 350 gal (1.330 liters)
Fuel Tank 150 gal (570 liters)
