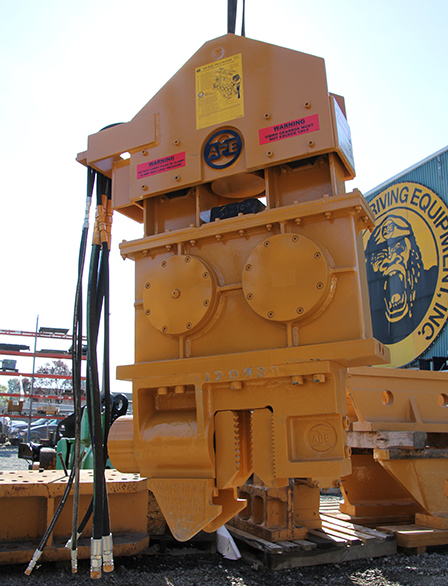

APE Model 15 Vibratory Driver/Extractor
SPECIFICATIONS DATA
Eccentric moment 600 in-lbs (7 kgm)
Frequency (variable) 0-2,300 vpm
Driving Force 467 kN / 52 US tons
Maximum line pull 133 kN / 15 US tons
Suspended weight (with universal sheet clamp) 1451 kg / 3,200 lbs
Length 94 cm / 37 in
Width 30.5 mm / 12 in
Height with clamp attachment 297 cm / 71 in

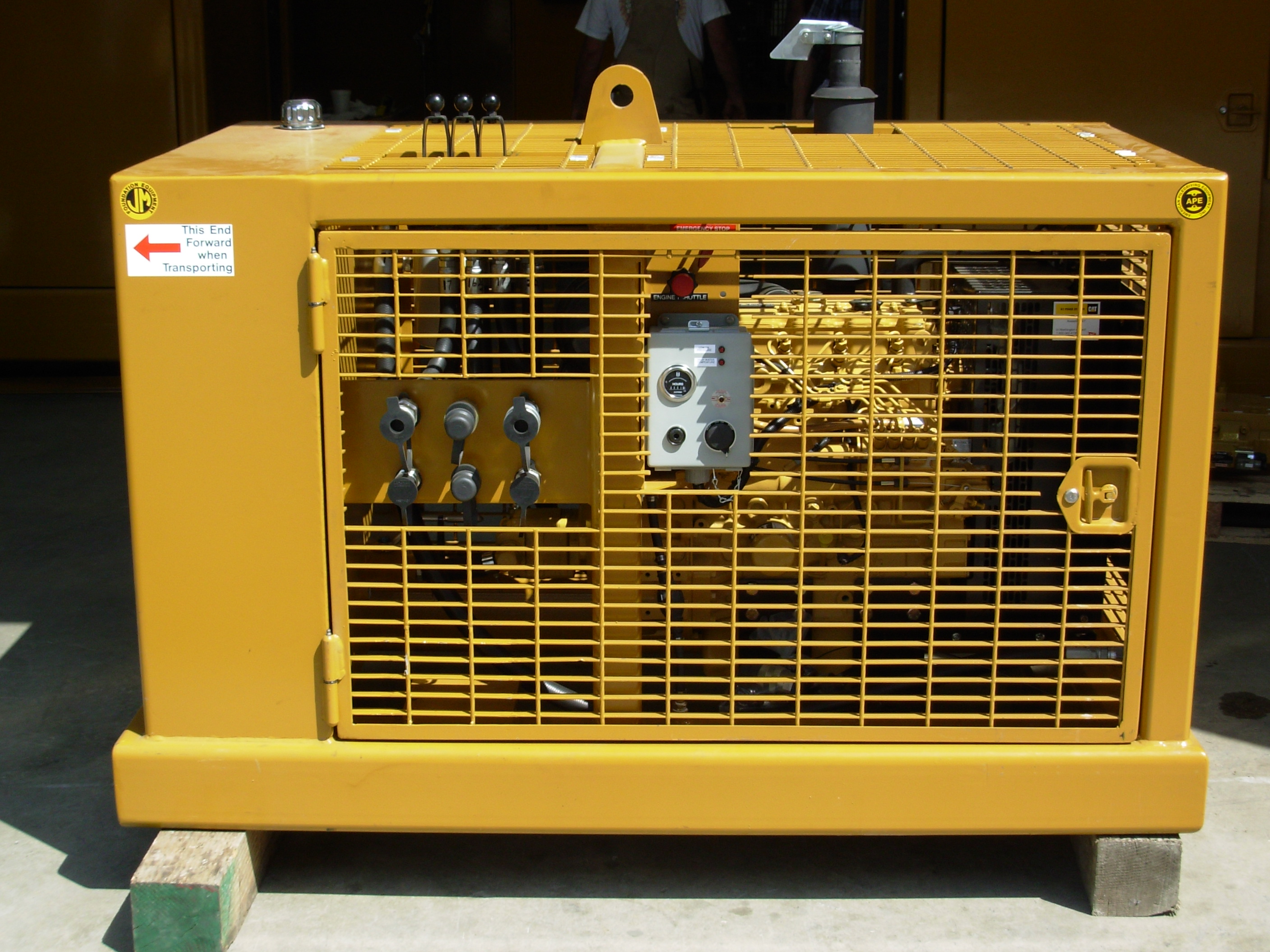

APE Model 51 Power Unit

SPECIFICATIONS DATA
Engine Caterpillar C2.2
Maximum Power 51 hp (38 kW)
Operating Speed 1,500 to 3,000 rpm
Drive Pressure (Max) 2,500 psi (172 bar)
Drive Flow (Max) 32 gpm (121 lpm)
Weight 3,000 lbs (1,361 kg)
Length 68 in (172 cm)
Width 40.56 in (103 cm)
Height 48 in (122 cm)
Hydraulic Reservoir 55 gal (208 l)
Fuel Tank 24 gal (91 l)
