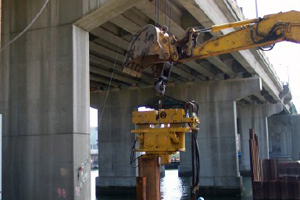

APE Model 150 Low-Headroom Vibratory Driver/Extractor
SPECIFICATIONS DATA
Eccentric moment 2,200 in-lbs (25 kgm)
Frequency (variable) 0-1650 vpm
Driving Force 757 kN (30-80 US tons)
Amplitude 7 - 20 mm (1/4 in - 3/4 in)
Maximum line pull 15 US tons
Weight (without clamp attachment) 3,084 kg (6,800 lbs)
Suspended weight (w/caisson beams and clamp) 3,855 kg (8,500 lbs)
Length with standard clamp 223 cm (88 in)
Width throat 36 cm (14 in)
Width at widest point 43 cm (17 in)
Height from top of hammer 147 cm (58 in)
Hydraulic hose length (standard) 30 m (100 ft)
Hydraulic hose weight 454 kg (1000 lbs)

APE Model 375 Power Unit

SPECIFICATIONS DATA
Engine Caterpillar C9 ACERT Tier III
Power (Max) 375 hp (280 kW)
Operating Speed (No Load) 800 to 2,100 rpm
Drive Pressure (Max) 4,800 psi (326 bar)
Drive Flow (Variable) 0 to 135 gpm (513 lpm)
Clamp Pressure (Max) 4,600 psi (312 bar)
Clamp Flow 10 gpm (41 lpm)
Weight 12,600 lbs (5,714 kg)
Length 110 in (279 cm)
Width 66 in (168 cm)
Height 68 in (172 cm)
Hydraulic Reservoir 350 gal (1.330 liters)
Fuel Tank 150 gal (570 liters)


3 | 6 | 15 | 20 | 50 | 100 | 150 | 200 | 200-6 | 300 | 400 | 417 | 4400 | 600 | 100 Tandem | 200 Tandem | 400 Tandem | 120VM | 170VM | 250VM
150 Low Headroom | 150T | 200T | 200-6T | 200-6T2 | 200-6T3 | 15E | 20E | 50E | 100E | 33X | 64X

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
