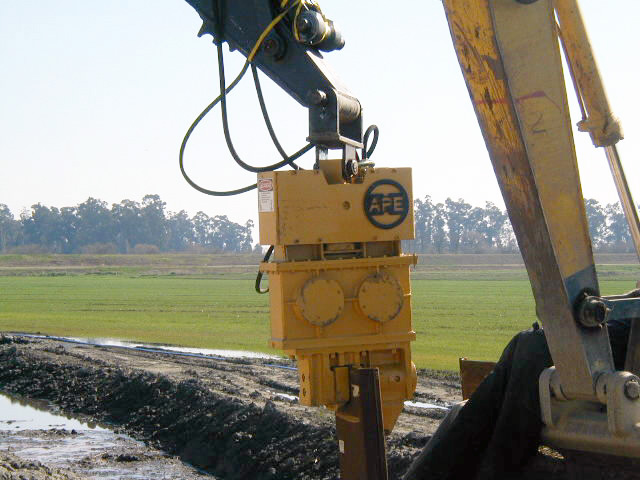

APE Model 15E Vibratory Driver/Extractor
SPECIFICATIONS DATA
Eccentric moment 600 in-lbs (7 kgm)
Frequency (variable) 0-2,300 vpm
Driving Force 467 kN / 52 US tons
Maximum line pull 133 kN / 15 US tons
Suspended weight (with universal sheet clamp) 1451 kg / 3,200 lbs
Length 94 cm / 37 in
Width 30.5 mm / 12 in
Height with clamp attachment 297 cm / 71 in



3 | 6 | 15 | 20 | 50 | 100 | 150 | 200 | 200-6 | 300 | 400 | 417 | 4400 | 600 | 100 Tandem | 200 Tandem | 400 Tandem | 120VM | 170VM | 250VM
150 Low Headroom | 150T | 200T | 200-6T | 200-6T2 | 200-6T3 | 15E | 20E | 50E | 100E | 33X | 64X

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
