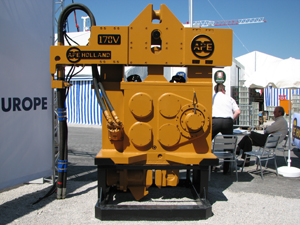

APE Model 170VM Vibratory Driver/Extractor
SPECIFICATIONS DATA
Eccentric Moment 2,250 in-lbs (26 kgm)
Frequency 0 to 2300 vpm
Driving Force 0 to 120 US tons (0 to 107 tons)
Vibrating Mass w/ Clamp 6,400 lbs (2,902 kg)
Amplitude w/ Clamp 0 to 0.70 in (1.78 cm)
Pile Cylinder Force 125 US tons (127 tons)
Extraction Line Pull 61 US tons (61 tons)
Suspended Weight without Clamp 7,600 lbs (3,447 kg)
Suspended Weight w/ Clamp 8,950 lbs (4,059 kg)
Length 69 in (175 cm)
Width at Throat 14 in (36 cm)
Width at Widest Point 23 in (58 cm)
Height without Clamp 77 in (196 cm)
Height w/ Clamp and Guides 100 in (254 cm)

APE Model 375 Power Unit

SPECIFICATIONS DATA
Engine Caterpillar C9 ACERT Tier III
Power (Max) 375 hp (280 kW)
Operating Speed (No Load) 800 to 2,100 rpm
Drive Pressure (Max) 4,800 psi (326 bar)
Drive Flow (Variable) 0 to 135 gpm (513 lpm)
Clamp Pressure (Max) 4,600 psi (312 bar)
Clamp Flow 10 gpm (41 lpm)
Weight 12,600 lbs (5,714 kg)
Length 110 in (279 cm)
Width 66 in (168 cm)
Height 68 in (172 cm)
Hydraulic Reservoir 350 gal (1.330 liters)
Fuel Tank 150 gal (570 liters)
