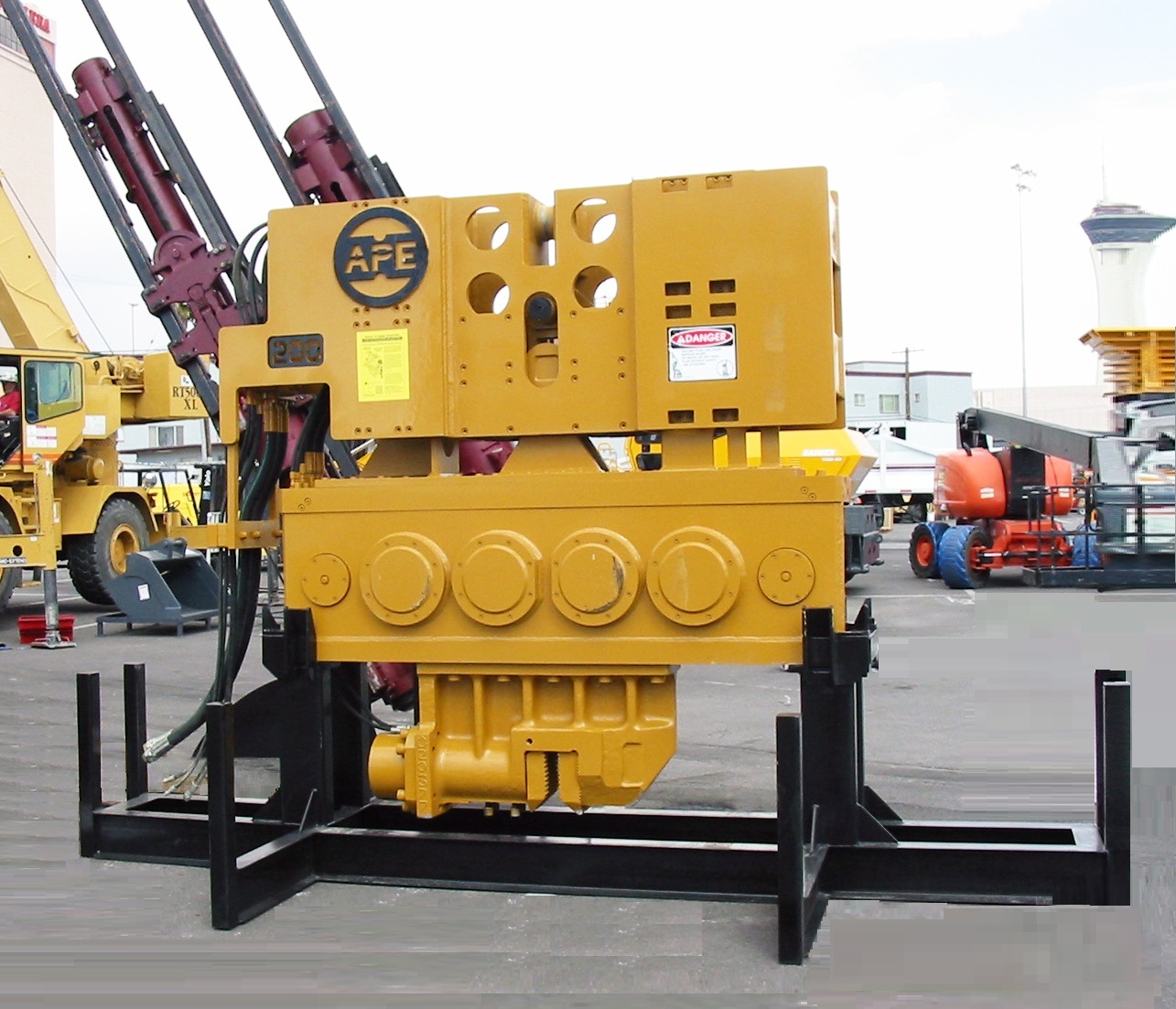

APE Model 200T Vibratory Driver/Extractor
SPECIFICATIONS DATA
Eccentric moment 5,200 in-lbs (60 kgm)
Frequency (variable) 0-1800 vpm
Driving Force 2,125 kN / 239 US tons
Amplitude 29 mm / 1.15 in
Maximum line pull 1335 kN / 150 US tons
Suspended Weight (with universal clamp) 6304 kg / 13,900 lbs
Length 256 cm / 101 in
Width throat 35 cm / 14 in
Width at widest point 43 cm / 17 in
Height (with 223 kN (30 ton) short suppressor & clamp) 153 cm / 60 in
Height (with 1335 kN (150 ton) (suppressor & 200 clamp) 238 cm / 94 in
Hydraulic hose length (standard) 46 meters / 150 ft
Hydraulic hose weight 680 kg / 1,500 lbs

APE Model 700 Power Unit

SPECIFICATIONS DATA
Power Unit Engine C18 ACERT Tier III Certified
Hydraulic Tank (reserve) 60 gal (227 L)
Hydraulic Tank (main) 475 gal (1798 L)
Fuel Capacity 165 gal (625 L)
Clamp Flow 10 gpm (41 lpm)
Clamp Pressure (sheet clamp) 310 bar (4500 psi)
Maximum Hyd. Flow-Reverse 0-196 gpm (0-741.86 lpm)
Maximum Hyd. Flow-Forward 0-215 gpm (0-813.78 lpm)
Maximum Drive Pressure 4500 psi (310 bar)
Maximum Power 700 hp (514.86 kW)
Operating Speed 800 to 2100 rpm
Height 94 in (238.76 cm)
Width 82.25 in (208.92 cm)
Length 152 in (386.08 cm)
Weight 19,000 lbs (8618.26 kg)
