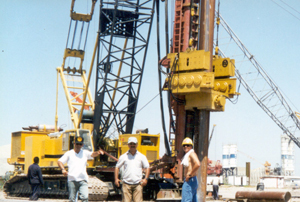

APE Model 200 Tandem Vibratory Driver/Extractor
SPECIFICATIONS DATA
Eccentric moment 5,200 in-lbs (60 kgm)
Frequency (variable) 0-1850 vpm
Driving Force 1,788 kN / 201 US tons
Amplitude 33mm / 1.28 in
Maximum line pull 1335 kN / 150 US tons
Suspended Weight (with universal clamp) 6304 kg / 14,900 lbs
Length 257 cm / 101 in
Width throat 36 cm / 14 in
Width at widest point 43 cm / 17 in
Height (with 223 kN (30 ton) short suppressor & clamp) 153 cm / 60 in
Height (with 1335 kN ( 150 ton) suppressor & 200 clamp) 239 cm / 94 in
Hydraulic hose length (standard) 46 m / 150 ft
Hydraulic hose weight 680 kg / 1500 lbs

There is not an APE Power Unit that is recomended by our database for the model you selected. Please consult the factory
 (800) 248-8498 or visit our Locations page for the phone the APE branch closest to you.


3 | 6 | 15 | 20 | 50 | 100 | 150 | 200 | 200-6 | 300 | 400 | 417 | 4400 | 600 | 100 Tandem | 200 Tandem | 400 Tandem | 120VM | 170VM | 250VM
150 Low Headroom | 150T | 200T | 200-6T | 200-6T2 | 200-6T3 | 15E | 20E | 50E | 100E | 33X | 64X

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
