Vibratory Driver / Extractor Specifications

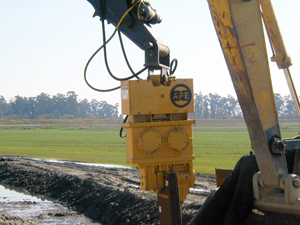

APE Model 20E Vibratory Driver/Extractor


SPECIFICATIONS DATA
Eccentric moment 900 in-lbs (10 kgm)
Frequency (variable) 0-1850 vpm
Driving Force 38 US tons
Amplitude 25.4 mm / 1 in
Maximum line pull 20 US tons
Suspended weight (with universal sheet clamp) 1315 kg / 2900 lbs
Length 99 cm / 39 in
Width 35 mm / 14 in
Height with suppressor & 50 clamp 51 cm / 20 in






Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
