Vibratory Driver / Extractor Specifications

3 | 6 | 15 | 20 | 50 | 100 | 150 | 200 | 200-6 | 300 | 400 | 417 | 4400 | 600 | 100 Tandem | 200 Tandem | 400 Tandem | 120VM | 170VM | 250VM
150 Low Headroom | 150T | 200T | 200-6T | 200-6T2 | 200-6T3 | 15E | 20E | 50E | 100E | 33X | 64X

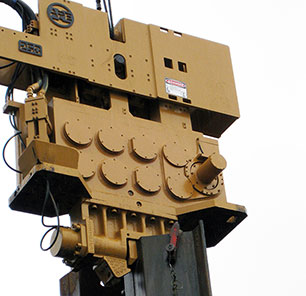

APE Model 250VM Vibratory Driver/Extractor
SPECIFICATIONS DATA
Eccentric Moment 4,500 in-lbs (52 kgm)
Frequency 1,750 VPM
Driving Force @ 1,750 VPM 196 US tons (177.8 tons)
Driving Force @ 1,950 VPM 243 US tons (220.4 tons)
Amplitude without Attachment 0 to 1.25 in ( 32 mm)
Max Line Pull 150 US tons (136.1 tons)
Suspended Weight w/ Clamp and 75 ft Hose 17,500 lbs (7,936 kg)
Dynamic Weight w/ Clamp 9,625 lbs (4,365 kg)
Length 125 in (318 cm)
Width at Throat 14 in (35 cm)
Width 17 in (43 cm)
Height 100 in (254 cm)
Hydraulic Hose Length 150 ft (45 m)
Hydraulic Hose Weight 50 ft with Oil 2,000 lbs (907 kg)

APE Model 700 Power Unit

SPECIFICATIONS DATA
Power Unit Engine C18 ACERT Tier III Certified
Hydraulic Tank (reserve) 60 gal (227 L)
Hydraulic Tank (main) 475 gal (1798 L)
Fuel Capacity 165 gal (625 L)
Clamp Flow 10 gpm (41 lpm)
Clamp Pressure (sheet clamp) 310 bar (4500 psi)
Maximum Hyd. Flow-Reverse 0-196 gpm (0-741.86 lpm)
Maximum Hyd. Flow-Forward 0-215 gpm (0-813.78 lpm)
Maximum Drive Pressure 4500 psi (310 bar)
Maximum Power 700 hp (514.86 kW)
Operating Speed 800 to 2100 rpm
Height 94 in (238.76 cm)
Width 82.25 in (208.92 cm)
Length 152 in (386.08 cm)
Weight 19,000 lbs (8618.26 kg)


3 | 6 | 15 | 20 | 50 | 100 | 150 | 200 | 200-6 | 300 | 400 | 417 | 4400 | 600 | 100 Tandem | 200 Tandem | 400 Tandem | 120VM | 170VM | 250VM
150 Low Headroom | 150T | 200T | 200-6T | 200-6T2 | 200-6T3 | 15E | 20E | 50E | 100E | 33X | 64X

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
