Wick Drain Specifications

APE Wick Drivers
Model 28 Model 100
 Model 200

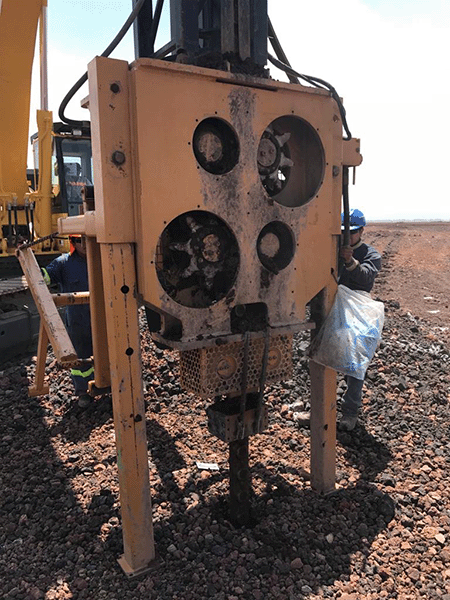

APE Model 28 Bottom-Drive™ Wick Drain
SPECIFICATIONS DATA
Static (Crowd) Force 28 US tons
Maximum Pressure 380 bars / 5500 psi
Suspended Weight 2585 kg / 5700 lbs
Length 180 cm / 70.94 in
Width 119 cm / 47 in
Whole Width 216 cm / 85 in
Height 232.4 cm / 91.5 in


Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
