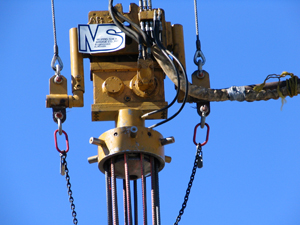

APE Model 3 Vibratory Driver/Extractor

PRODUCT DOCUMENTS

Print Specifications Sheet
Operating Manuals and Documents

SPECIFICATIONS	DATA
Eccentric moment	30 in-lbs (0.35 kgm)
Driving Force	27 kN / 3 US tons
Frequency (variable)	0-3000 vpm
Hyd motor type	Voac F11-10
Hydraulic motor displacement:	cu/in/rev: 0.60
Pile Clamp Force	107 kN / 12 US tons
Maximum line pull	44 kN / 5 US tons
Suspended weight(without suppressor)	100 kg / 220 lbs
Suspended weight(with suppressor)	272 kg / 600 lbs
Length	44 cm / 17.5 in
Width	18 cm / 7 in
Height with clamp attachment	91 cm / 36 in
Height without clamp attachment	70 cm / 27.5 in

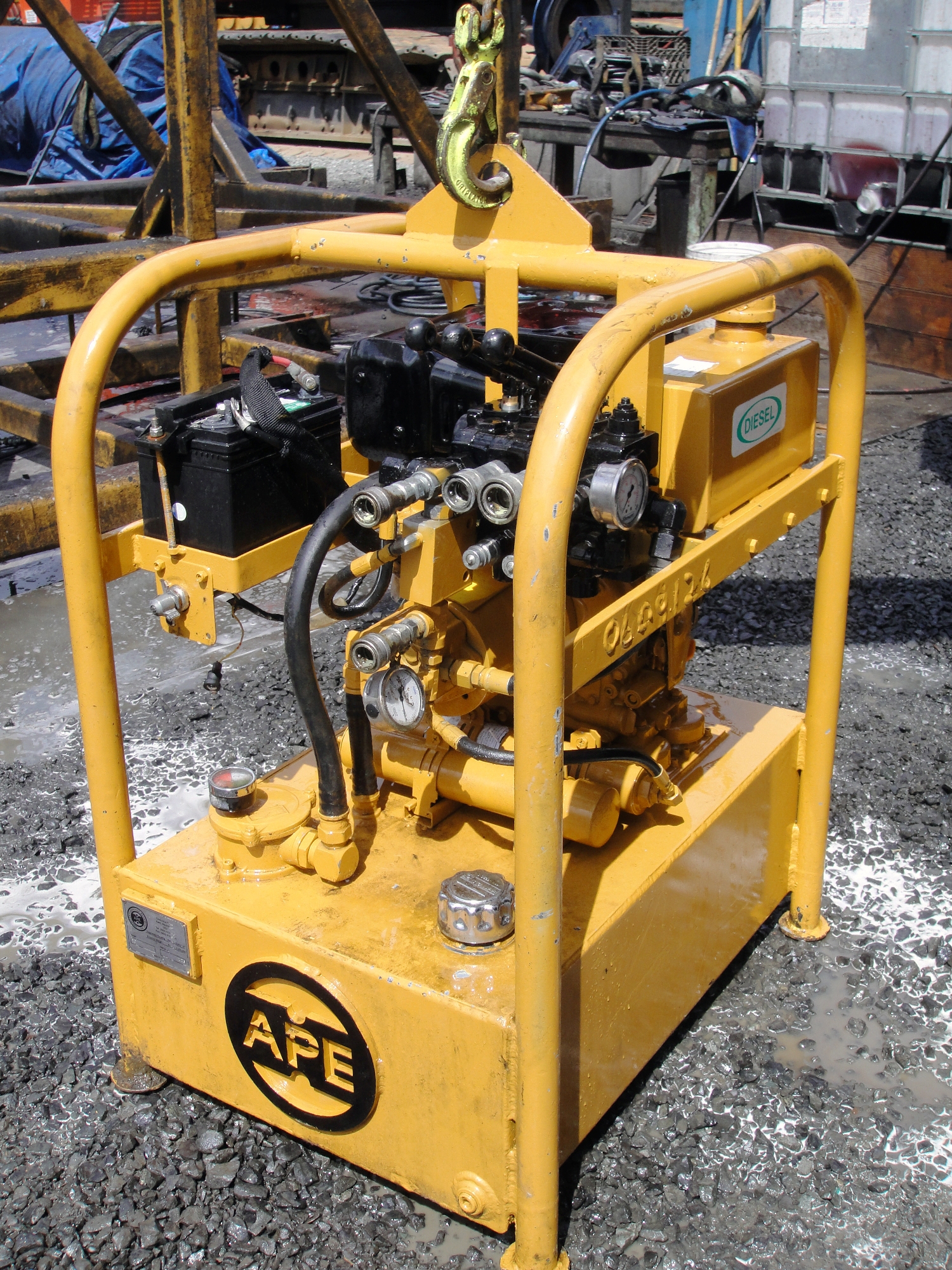

APE Model 10 Power Unit

SPECIFICATIONS	DATA
Power Unit Engine	YANMAR two stroke diesel
Engine oil capacity	4 US pints (1.0 litres)
Lubrication	Full Pressure with Full flow filter
Maximum Power	10 Horsepower (7.46 kW)
Operating Speed (rpm)	400 to 3600
Hydraulic system type	Open loop
Length	30 inches (762 mm)
Width	23 inches (584 mm)
Weight	250 lbs (113 Kg)
Maximum Hydraulic Flow	6 gpm (22.7 lpm)

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
