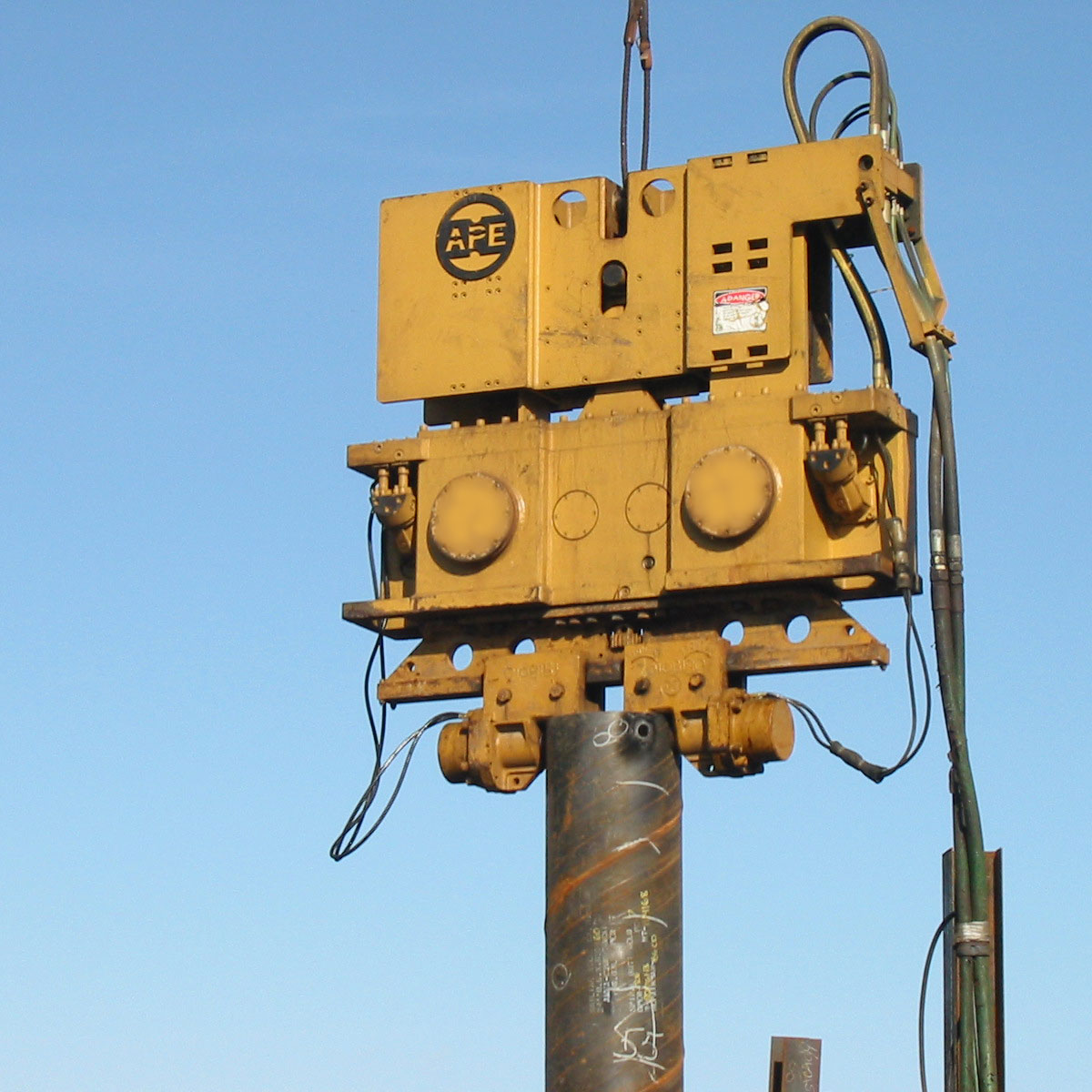

APE Model 300 Vibratory Driver/Extractor
SPECIFICATIONS DATA
Eccentric moment 6,500 in-lbs (75 kgm)
Frequency (variable) 0-1500 vpm
Centrifugal force 1,842 kN / 207 US tons
Amplitude 30 mm / 1.17 in
Maximum line pull 1335 kN / 150 US tons
Suspended Weight (With Universal Clamp) 9,977 kg / 22,000 lbs
Length 279 cm / 110 in
Width throat 35 cm / 14 in
Width at widest point 61 cm / 24 in
Height 269 cm / 106 in
Hydraulic hose length (standard) 46 m / 150 ft
Hydraulic hose weight 680 kg / 1500 lbs

APE Model 700 Power Unit

SPECIFICATIONS DATA
Power Unit Engine C18 ACERT Tier III Certified
Hydraulic Tank (reserve) 60 gal (227 L)
Hydraulic Tank (main) 475 gal (1798 L)
Fuel Capacity 165 gal (625 L)
Clamp Flow 10 gpm (41 lpm)
Clamp Pressure (sheet clamp) 310 bar (4500 psi)
Maximum Hyd. Flow-Reverse 0-196 gpm (0-741.86 lpm)
Maximum Hyd. Flow-Forward 0-215 gpm (0-813.78 lpm)
Maximum Drive Pressure 4500 psi (310 bar)
Maximum Power 700 hp (514.86 kW)
Operating Speed 800 to 2100 rpm
Height 94 in (238.76 cm)
Width 82.25 in (208.92 cm)
Length 152 in (386.08 cm)
Weight 19,000 lbs (8618.26 kg)


3 | 6 | 15 | 20 | 50 | 100 | 150 | 200 | 200-6 | 300 | 400 | 417 | 4400 | 600 | 100 Tandem | 200 Tandem | 400 Tandem | 120VM | 170VM | 250VM
150 Low Headroom | 150T | 200T | 200-6T | 200-6T2 | 200-6T3 | 15E | 20E | 50E | 100E | 33X | 64X

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
