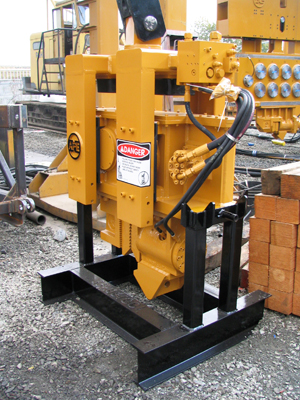

APE Model 33X Vibratory Driver/Extractor
SPECIFICATIONS DATA
Eccentric Moment 400 in-lbs (4.6 kgm)
Frequency 0 to 2,100 VPM
Motor Pressure Rating 5,000 psi (344 bar)
Driving Force 34 tons
Amplitude 0.60 in (15 mm)
Flow at Rated VPM 38 gpm (142 lpm)
Weight 2,000 lbs (910 kg)
Length 44 in (112 cm)
Width 22 in (53 cm)
Height w/ Suppressor and Clamp 43 in (110 cm)

APE Model 275 Power Unit

SPECIFICATIONS DATA
Engine Caterpillar C7 ACERT Tier III
Power 275 hp (205 kW)
Fuel Consumption @ 2100 rpm 13.8 gal/hr (52.4 liters/hr)
Fuel Consumption @ 1600 rpm 12.5 gal/hr (47.4 liters/hr)
Fuel Capacity 85 gal (323 liters)
Operating Speed 600 to 2,100 rpm
Drive Pressure 4,800 psi (326 bar)
Drive Flow (Variable) 0 to 74 gpm (300 lpm)
Clamp Pressure 4,500 psi (306 bar)
Clamp Flow 6 gpm (28 lpm)
Weight 6,800 lbs (3,084 kg)
Length 102 in (259 cm)
Width 50 in (127 cm)
Height 60 in (152 cm)


3 | 6 | 15 | 20 | 50 | 100 | 150 | 200 | 200-6 | 300 | 400 | 417 | 4400 | 600 | 100 Tandem | 200 Tandem | 400 Tandem | 120VM | 170VM | 250VM
150 Low Headroom | 150T | 200T | 200-6T | 200-6T2 | 200-6T3 | 15E | 20E | 50E | 100E | 33X | 64X

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
