Vibratory Driver / Extractor Specifications

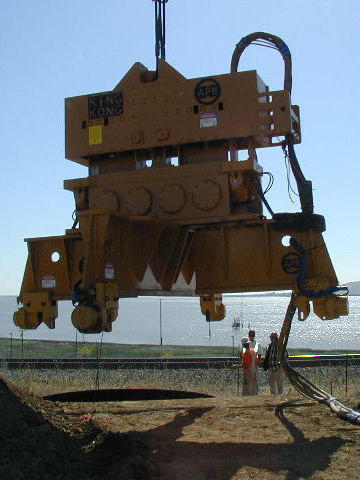

APE Model 400 Vibratory Driver/Extractor


SPECIFICATIONS DATA
Eccentric moment 13,000 in-lbs (149.78 kgm)
Frequency (variable) 400-1400 vpm
Driving Force 3203 kN / 360 US tons
Amplitude with dual clamps (dynamic wt: 16,000 lbs.) 40 mm / 1.63 in
Amplitude with Quad Clamps (dynamic wt: 27,000 lbs.) 32mm / .962 in
Maximum line pull 2,224 kN / 250 US tons
Suspended Weight (with 17' beam and clamps) 22,226 kg / 49,000 lbs
Suspended Weight (w/Quad Clamp System & hoses) 27,669 kg / 61,000 lbs
Suspended Weight (w/sheet clamp & hoses) 17,690 kg / 39,000 lbs
Length 305 cm / 120 in
Width throat 66 cm / 26 in
Width at widest point 66 cm / 26 in
Height with 8' beam and clamps 244 cm / 96 in
Height with Quad Clamp System 280 cm / 110 in
Hydraulic Hose Length (standard) 45 m / 150 ft

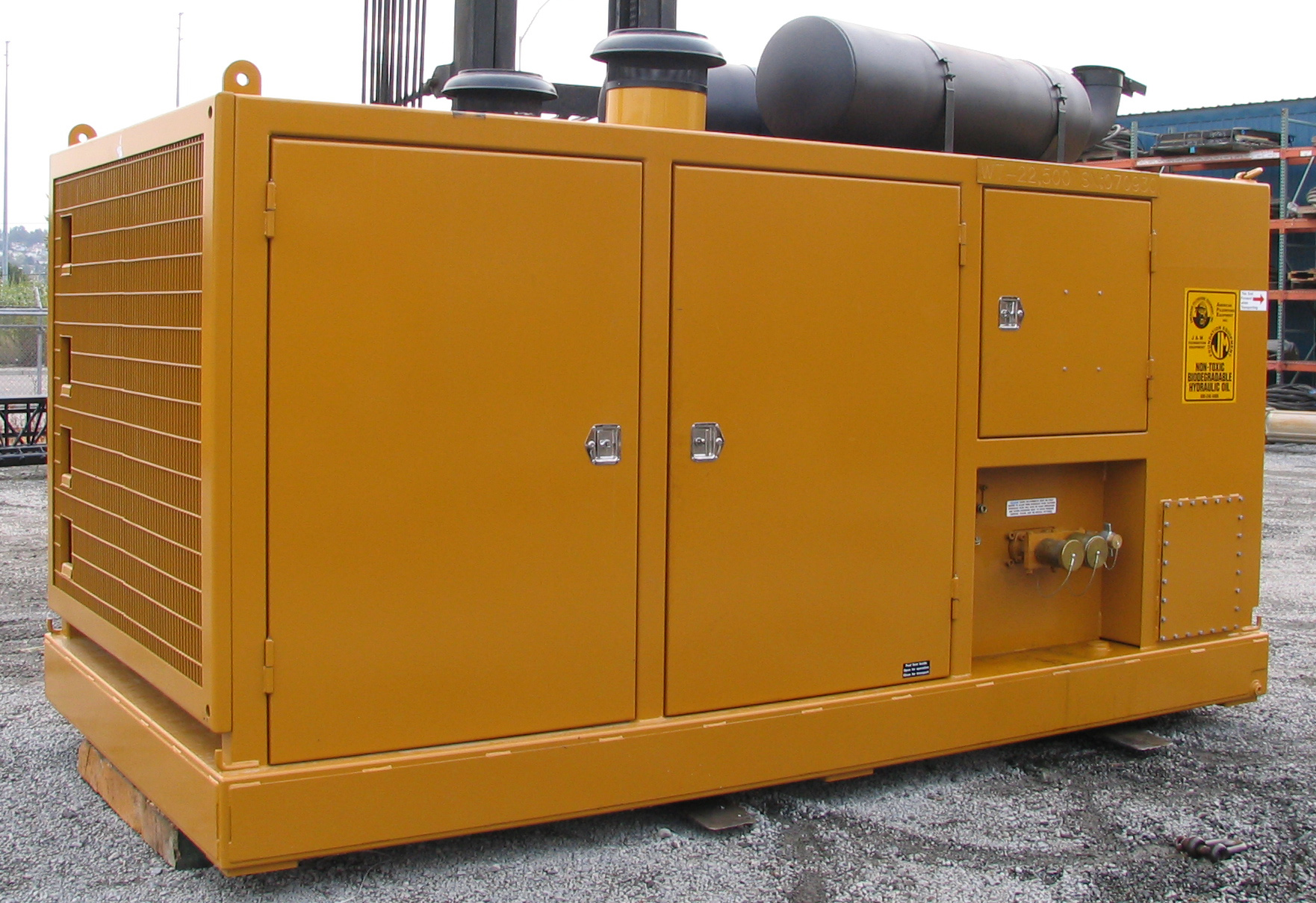

APE Model 1050 Power Unit

SPECIFICATIONS DATA
Power Unit Engine Caterpillar E-series C27 ACERT
Maximum Power 1050 hp (745kW)
Operating Speed 800 to 2100 rpm
Maximum Drive Pressure 5,000 psi (340 bar)
Drive Flow 0 to 321 gpm (1,219 lpm)
Clamp Pressure 4,800 psi (326 bar)
Clamp Pump Flow @ 2200 rpm 6.5 gpm (27 lpm)
Weight 27,000 lbs (12,247 kg)
Length 169 in (442 cm)
Width 82 in (208 cm)
Height 96 in (244 cm)





Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
