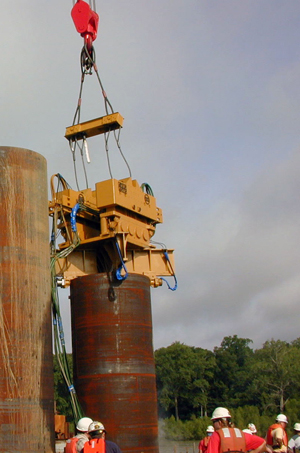

APE Model 400 Tandem Vibratory Driver/Extractor

PRODUCT DOCUMENTS

Print Specifications Sheet
Operating Manuals and Documents

SPECIFICATIONS	DATA
Eccentric moment	26,000 in-lbs (299.55 kgm)
Frequency (variable)	400-1500 vpm
Driving Force	7384 kN / 830 tons
Amplitude with Quad Clamps	(dynamic wt: 40,000 lbs.) 30 mm / 1.2 in
Maximum line pull	4,448 kN / 500 US tons
Suspended Weight with 15 foot caisson beam clamps	47,200 kg / 104,000 lbs
Length	3 m / 10 ft
Width throat	3 m / 10 ft
Width at widest point	3 m / 10 ft
Height with 15' beam and four clamps	3.7 m / 12 ft
Hydraulic Hose Length (standard)	45 m / 150 ft

APE Model 1050 Power Unit

SPECIFICATIONS	DATA
Power Unit Engine	Caterpillar E-series C27 ACERT
Maximum Power	1050 hp (745kW)
Operating Speed	800 to 2100 rpm
Maximum Drive Pressure	5,000 psi (340 bar)
Drive Flow	0 to 321 gpm (1,219 lpm)
Clamp Pressure	4,800 psi (326 bar)
Clamp Pump Flow @ 2200 rpm	6.5 gpm (27 lpm)
Weight	27,000 lbs (12,247 kg)
Length	169 in (442 cm)
Width	82 in (208 cm)
Height	96 in (244 cm)

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
