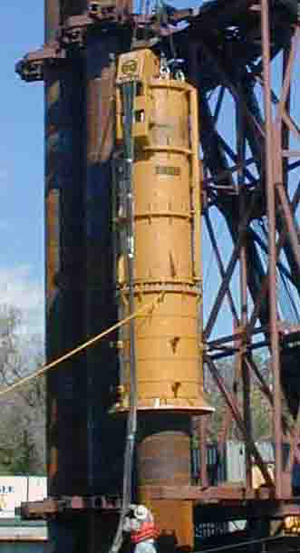

APE Model 400u Hydraulic Impact Hammer
SPECIFICATIONS DATA
Maximum Rated Energy 360,000 ft-lbs / 488.1 kJ
Maximum Stroke 54 in / 137.2 cm
Minimum Stroke 6 in / 15.3 cm
Blows per minute at minimum stroke [limited] 72 bpm
Blows per minute at 4 (four) foot stroke 30 bpm
Total suspended weight with drive cap 142,500 lb / 64636.91 kg
Ram Weight 80,000 lb / 36287.39 kg
Anvil (drive cap - standard) 13,000 lb / 5896.7 kg
Pile Sleeve (standard) 12,000 lb / 5443.11 kg
Underwater Ballast (standard cap) 25,000 lb / 11339.81 kg
Height overall of housing 213 in / 541.02 cm
Pile sleeve suitable for piles to O.D. up to 54 in / 137.2 cm
Length excluding pile sleeve 273 in / 693.42 cm
Length including pile sleeve (excluding ballast) 393 in / 998.22 cm
Width 74 in / 1879.6 cm
Average operating pressure 4500 psi / 310 bar

APE Model 580 Power Unit

SPECIFICATIONS DATA
Engine Caterpillar C15 Tier III
Max Power 580 hp (358 kW)
Operating Speed 800 to 2,100 rpm
Max Pressure 4,500 psi (310 bar)
Max Hyrdraulic Flow 205 gpm (779 lpm)
Max Clamp Pressure 4,500 psi (310 bar)
Clamp Flow 10 gpm (41 lpm)
Weight 16,800 lbs (7,719 kg)
Length 138 in (350 cm)
Width 72 in (183 cm)
Height 101 in (257 cm)
Hydraulic Tank Capacity 660 gal (2,498 liters)
Fuel Tank Capacity 150 gal (570 liters)


Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
