Power Unit Specifications

10 | 51 | 275 | 375 | 475 | 580 | 700 | 1050

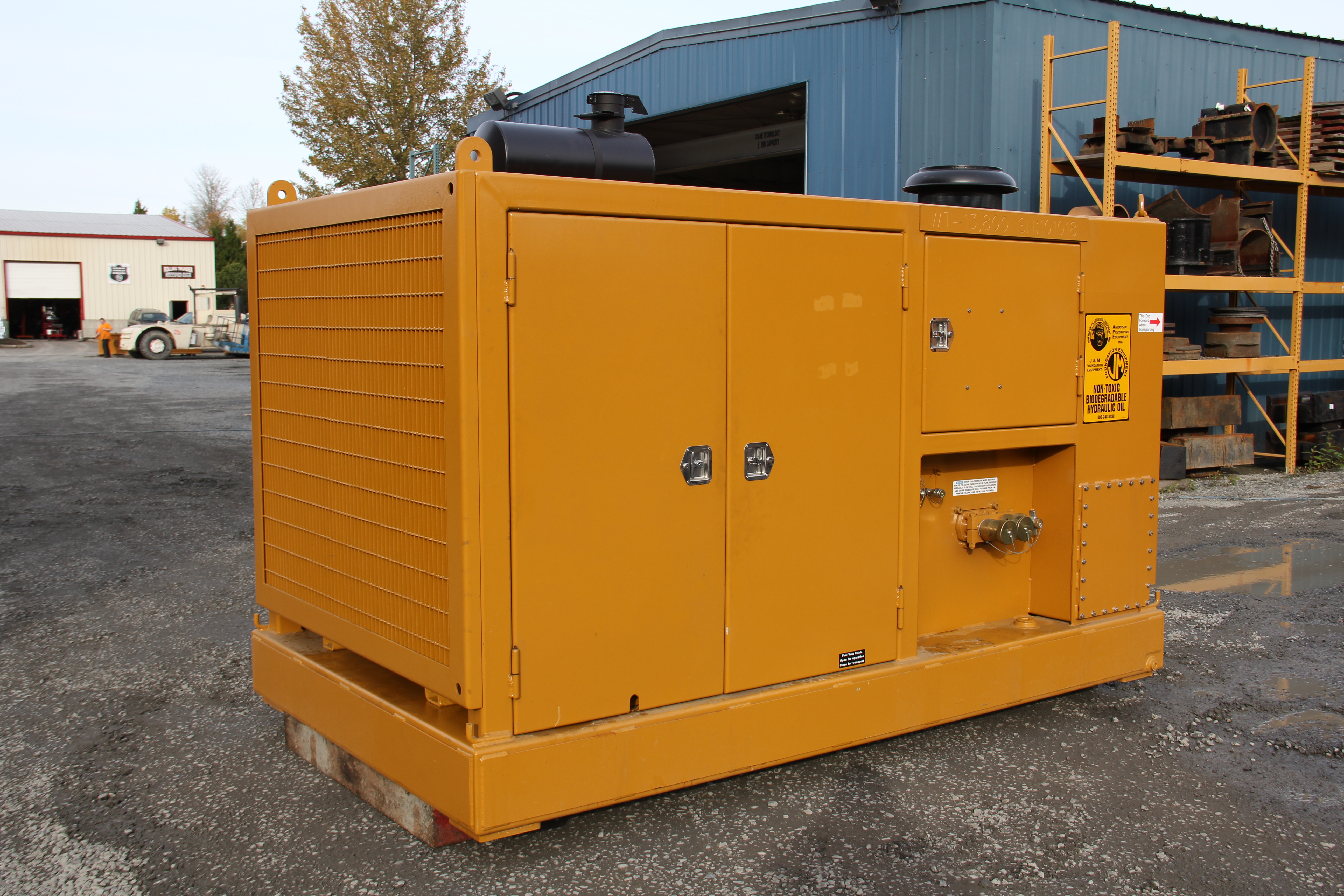

APE Model 475 Power Unit
SPECIFICATIONS DATA
Engine Caterpillar C13 Tier III
Max Power 475 hp (349.36 kW)
Operating Speed 800 to 2100 rpm
Max Pressure 4800 psi (326 bar)
Max Hydraulic Flow 135 gpm (513 lpm)
Max Clamp Pressure 4,600 psi (312 bar)
Clamp Flow 10 gpm (41 lpm)
Weight 13,800 lbs (6259.57 kg)
Length 127.5 in (323.85 cm)
Width 73.5 in (186.69 cm)
Height 92.25 in (234.32 cm)
Fuel Tank Capacity 150 gal (570 liters)
Hyrdraulic Tank Capacity 350 gal (1.330 liters)


10 | 51 | 275 | 375 | 475 | 580 | 700 | 1050

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
