Vibratory Driver / Extractor Specifications

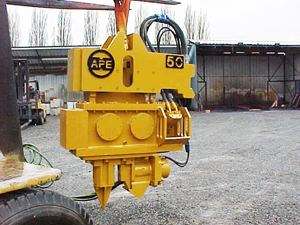

APE Model 50 Vibratory Driver/Extractor
|
|
|
|
| SPECIFICATIONS |
DATA |
| Eccentric moment |
1,300 in-lbs (14.98 kgm) |
| Frequency (variable) |
0-1,800 vpm |
| Driving Force |
533 kN / 60 US tons |
| Amplitude |
22 mm / 7/8 in |
| Maximum line pull |
266 kN / 30 US tons |
| Suspended weight (with universal sheet clamp) |
2,630 kg / 5,800 lbs |
| Length |
132 cm / 52 in |
| Width |
355 mm / 14 in |
| Height with suppressor & 150 clamp |
172 cm / 68 in |
| Hydraulic hose length (standard) |
30 m / 100 ft |
| Hydraulic hose weight |
227 kg / 500 lbs |
|

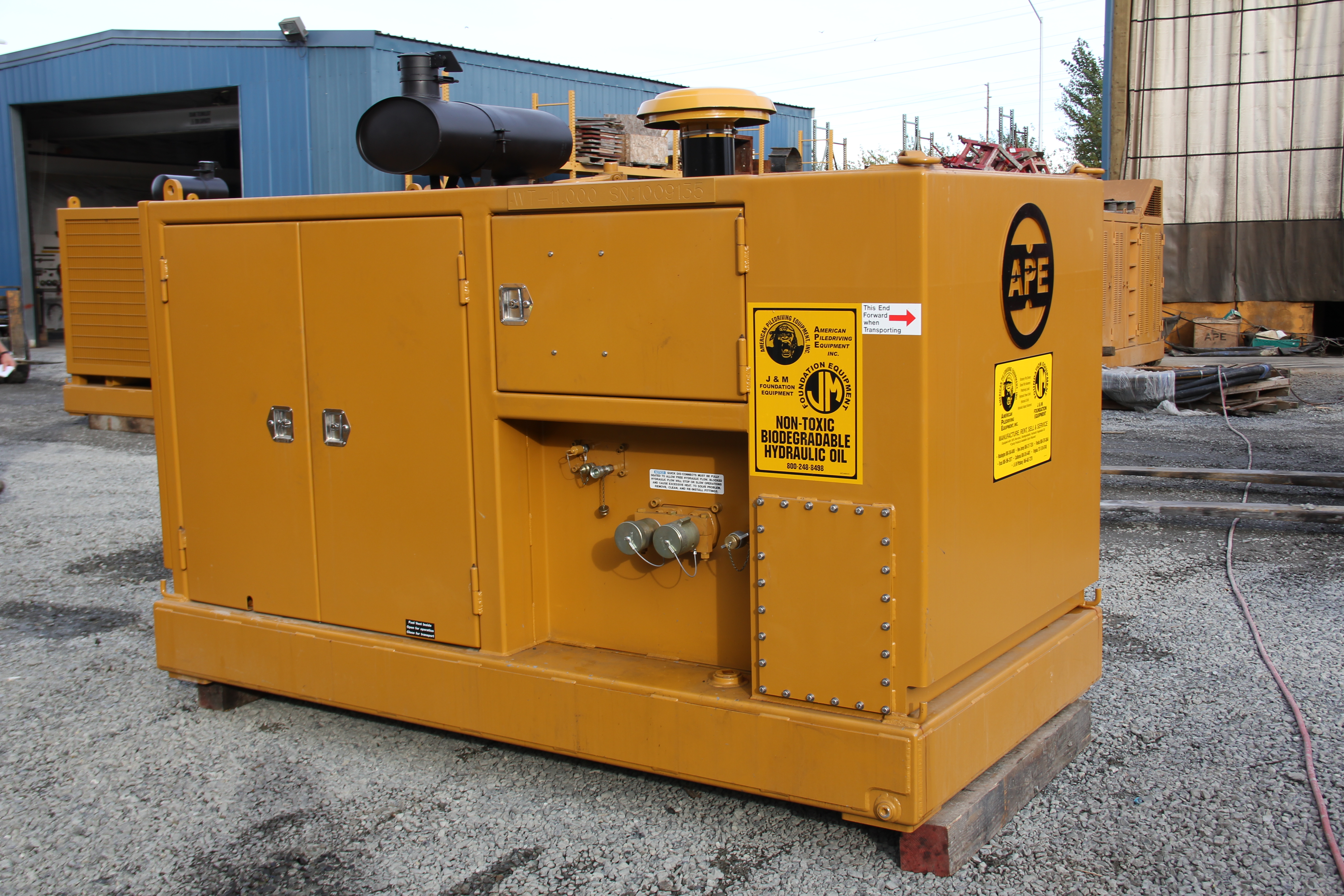

APE Model 275 Power Unit
| SPECIFICATIONS |
DATA |
| Engine |
Caterpillar C7 ACERT Tier III |
| Power |
275 hp (205 kW) |
| Fuel Consumption @ 2100 rpm |
13.8 gal/hr (52.4 liters/hr) |
| Fuel Consumption @ 1600 rpm |
12.5 gal/hr (47.4 liters/hr) |
| Fuel Capacity |
85 gal (323 liters) |
| Operating Speed |
600 to 2,100 rpm |
| Drive Pressure |
4,800 psi (326 bar) |
| Drive Flow (Variable) |
0 to 74 gpm (300 lpm) |
| Clamp Pressure |
4,500 psi (306 bar) |
| Clamp Flow |
6 gpm (28 lpm) |
| Weight |
6,800 lbs (3,084 kg) |
| Length |
102 in (259 cm) |
| Width |
50 in (127 cm) |
| Height |
60 in (152 cm) |
|
|
