APE Model 500u Hydraulic Impact Hammer
SPECIFICATIONS DATA
Maximum Rated Energy 500,000 ft-lbs / 62.98 kNm
Maximum Stroke 48 in/1219.2 mm
Minimum Stroke 6 in/152.4 mm
Blows per minute at minimum stroke 40 bpm
Blows per minute at maximum stroke 28 bpm
Total suspended weight with drive cap 280,000 lb / 127,006 kg
Ram Weight 120,000 lb / 54431.1 kg
Anvil (drive cap - standard) 90,000 lb / 40,860 kg
Pile Sleeve (standard) 12,000 lb / 5443.11 kg
Height overall of housing 421 in / 10,700 mm
Pile sleeve suitable for piles to O.D. up to 96 in / 2438 mm
Length excluding pile sleeve 313 in / 7944 mm
Length including pile sleeve (excluding ballast) 475.5 in / 12078 mm

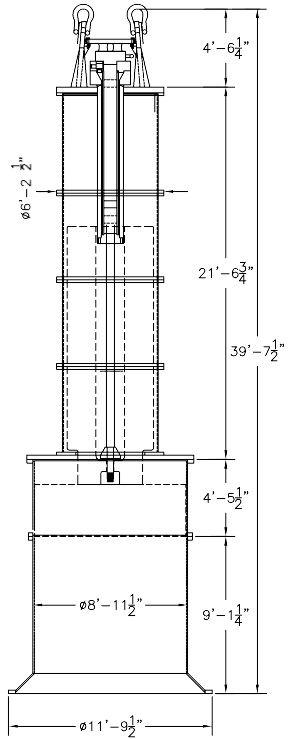

Width see figure
Average operating pressure 4500 psi / 310 bar
Maximum oil flow 250 gpm / 946 lpm
Required drive power 700 hp / 522 kW

APE Model 700 Power Unit

SPECIFICATIONS DATA
Power Unit Engine C18 ACERT Tier III Certified
Hydraulic Tank (reserve) 60 gal (227 L)
Hydraulic Tank (main) 475 gal (1798 L)
Fuel Capacity 165 gal (625 L)
Clamp Flow 10 gpm (41 lpm)
Clamp Pressure (sheet clamp) 310 bar (4500 psi)
Maximum Hyd. Flow-Reverse 0-196 gpm (0-741.86 lpm)
Maximum Hyd. Flow-Forward 0-215 gpm (0-813.78 lpm)
Maximum Drive Pressure 4500 psi (310 bar)
Maximum Power 700 hp (514.86 kW)
Operating Speed 800 to 2100 rpm
Height 94 in (238.76 cm)
Width 82.25 in (208.92 cm)
Length 152 in (386.08 cm)
Weight 19,000 lbs (8618.26 kg)


Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
