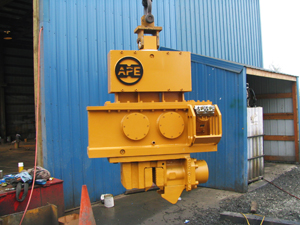

APE Model 50E Vibratory Driver/Extractor
SPECIFICATIONS DATA
Eccentric moment 1,300 in-lbs (14.98 kgm)
Frequency (variable) 0-1650 vpm
Driving Force 533 kN / 60 US tons
Amplitude 22 mm / 7/8 in
Maximum line pull 20 US tons
Suspended weight (with universal sheet clamp) 1,950 kg / 4,300 lbs
Length 132 cm / 52 in
Width 355 mm / 14 in
Height with suppressor & 50 clamp 172 cm / 68 in



3 | 6 | 15 | 20 | 50 | 100 | 150 | 200 | 200-6 | 300 | 400 | 417 | 4400 | 600 | 100 Tandem | 200 Tandem | 400 Tandem | 120VM | 170VM | 250VM
150 Low Headroom | 150T | 200T | 200-6T | 200-6T2 | 200-6T3 | 15E | 20E | 50E | 100E | 33X | 64X

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
