Power Unit Specifications

10 | 51 | 275 | 375 | 475 | 580 | 700 | 1050

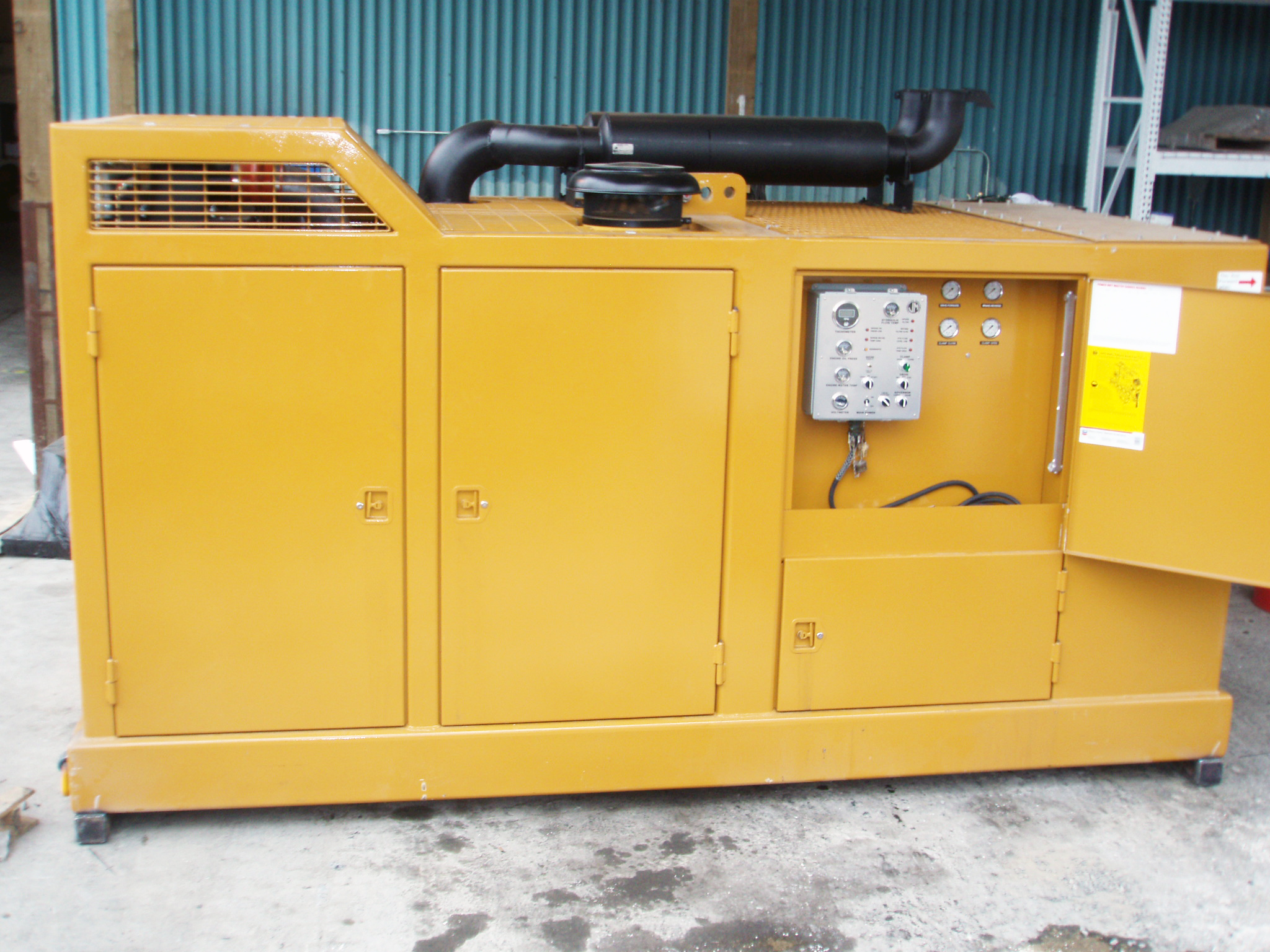

APE Model 580 Power Unit
SPECIFICATIONS DATA
Engine Caterpillar C15 Tier III
Max Power 580 hp (358 kW)
Operating Speed 800 to 2,100 rpm
Max Pressure 4,500 psi (310 bar)
Max Hyrdraulic Flow 205 gpm (779 lpm)
Max Clamp Pressure 4,500 psi (310 bar)
Clamp Flow 10 gpm (41 lpm)
Weight 16,800 lbs (7,719 kg)
Length 138 in (350 cm)
Width 72 in (183 cm)
Height 101 in (257 cm)
Hydraulic Tank Capacity 660 gal (2,498 liters)
Fuel Tank Capacity 150 gal (570 liters)


10 | 51 | 275 | 375 | 475 | 580 | 700 | 1050

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
