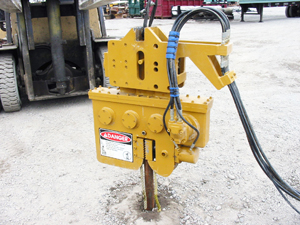

APE Model 6 Vibratory Driver/Extractor

PRODUCT DOCUMENTS

Print Specifications Sheet
Operating Manuals and Documents

SPECIFICATIONS	DATA
Eccentric moment	60 in-lbs (0.69 kgm)
Drive force	68 kN / 7.67 US tons
Frequency (variable)	0-3000 vpm
Hyd motor type	Voac F11-10
Hydraulic motor displacement:	cu/in/rev: 0.60
Motor displacement:	0.60 cu in/rev
Pile Clamp Force	214 kN / 24 US tons
Maximum line pull	44 kN / 5 US tons
Suspended weight(without suppressor)	173 kg / 380 lbs
Suspended weight (with suppressor)	300 kg / 660 lbs
Length	63 cm / 25 in
Width	18 cm / 7 in
Height with clamp attachment	91 cm / 36 in
Height without clamp attachment	70 cm / 27.5 in

APE Model 10 Power Unit

SPECIFICATIONS	DATA
Power Unit Engine	YANMAR two stroke diesel
Engine oil capacity	4 US pints (1.0 litres)
Lubrication	Full Pressure with Full flow filter
Maximum Power	10 Horsepower (7.46 kW)
Operating Speed (rpm)	400 to 3600
Hydraulic system type	Open loop
Length	30 inches (762 mm)
Width	23 inches (584 mm)
Weight	250 lbs (113 Kg)
Maximum Hydraulic Flow	6 gpm (22.7 lpm)

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
