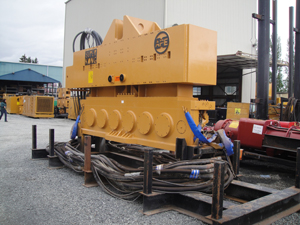

APE Model 600 Vibratory Driver/Extractor

PRODUCT DOCUMENTS

Print Specifications Sheet
Operating Manuals and Documents

SPECIFICATIONS	DATA
Eccentric moment	20,000 in-lbs (230.42 kgm)
Frequency (variable)	400-1400 vpm
Driving Force	3203 kN / 556 tons
Amplitude with 15' Dual Clamps	(dynamic wt: 30,000 lbs.) 34 mm / 1.34 in
Amplitude with 15' Quad Clamps	(dynamic wt: 36,000 lbs.) 29 mm / 1.12 in
Maximum line pull	379.2 mt / 418 US tons
Suspended Weight with 15' Wood Clamp System and 150' Hoses	30,385 kg / 67,000 lbs
Length	430 cm / 170 in
Width throat	90 cm / 36 in
Width at widest point	90 cm / 36 in
Height with 11' beam and clamps	244 cm / 96 in
Height with 15' Quad Clamp system	280 cm / 110 in
Hydraulic Hose Length (Standard)	45 m / 150 ft

APE Model 1050 Power Unit

SPECIFICATIONS	DATA
Power Unit Engine	Caterpillar E-series C27 ACERT
Maximum Power	1050 hp (745kW)
Operating Speed	800 to 2100 rpm
Maximum Drive Pressure	5,000 psi (340 bar)
Drive Flow	0 to 321 gpm (1,219 lpm)
Clamp Pressure	4,800 psi (326 bar)
Clamp Pump Flow @ 2200 rpm	6.5 gpm (27 lpm)
Weight	27,000 lbs (12,247 kg)
Length	169 in (442 cm)
Width	82 in (208 cm)
Height	96 in (244 cm)

Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
