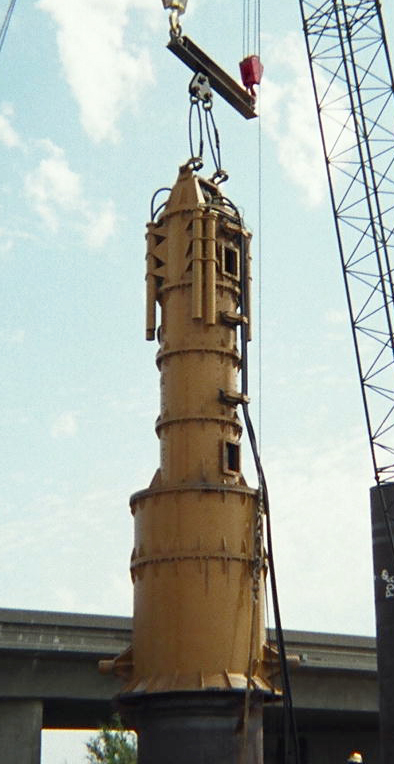

APE Model 750u Hydraulic Impact Hammer
SPECIFICATIONS DATA
Maximum Rated Energy 750,000 ft-lbs / 847 Kj
Maximum Stroke 75 in/1905 mm
Minimum Stroke 6 in/152.4 mm
Blows per minute at minimum stroke 40 bpm
Blows per minute at maximum stroke 20 bpm
Total suspended weight with drive cap 280,000 lb / 127,006 kg
Ram Weight 120,000 lb / 54431.1 kg
Anvil (drive cap - standard) 90,000 lb / 40,860 kg
Pile Sleeve (standard) 12,000 lb / 5443.11 kg
Height overall of housing 421 in / 10,700 mm
Pile sleeve suitable for piles to O.D. up to 96 in / 2438 mm
Length excluding pile sleeve 313 in / 7944 mm
Length including pile sleeve (excluding ballast) 475.5 in / 12078 mm
Width see figure
Average operating pressure 4500 psi / 310 bar
Maximum oil flow 250 gpm / 946 lpm
Required drive power 990 hp / 738 kW

APE Model 1050 Power Unit

SPECIFICATIONS DATA
Power Unit Engine Caterpillar E-series C27 ACERT
Maximum Power 1050 hp (745kW)
Operating Speed 800 to 2100 rpm
Maximum Drive Pressure 5,000 psi (340 bar)
Drive Flow 0 to 321 gpm (1,219 lpm)
Clamp Pressure 4,800 psi (326 bar)
Clamp Pump Flow @ 2200 rpm 6.5 gpm (27 lpm)
Weight 27,000 lbs (12,247 kg)
Length 169 in (442 cm)
Width 82 in (208 cm)
Height 96 in (244 cm)


Click here to view Pilebuck's comprehensive hammer specs

Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
