J&M Hydraulic Impact Hammer
| J&M Hydraulic Impact Hammer | ||
|---|---|---|
|
J&M Model 70 J&M Model 115 |
J&M Model 160 J&M Model 220 |
J&M Model 275 J&M Model 345 |

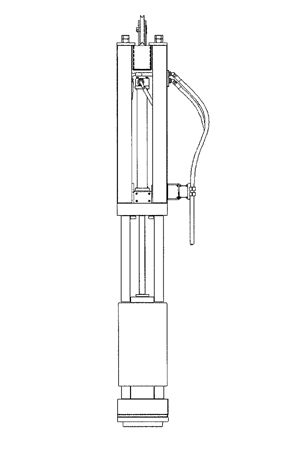

J&M Model 220 Hydraulic Impact Hammer
| Product Documents |
|---|
|
Save PDF (Takes a Few Moments) Operating Manuals and Documents |
| Specifications | Standard | Metric |
|---|---|---|
| Ram Weight | 22,000 lbs | 9,979.03 kg |
| Rated Energy | 88,000 ft-lbs | 119.31 kNm |
| Stroke at Rated Energy | 48 in | 121.92 cm |
| Blows per Minute | 48-80 min-max | |
| Weight without Insert | 35,000 lbs | 15,875.73 kg |
| Height | 243 in | 617.22 cm |
| Standard Lead Size | 8"x32" | |
Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
