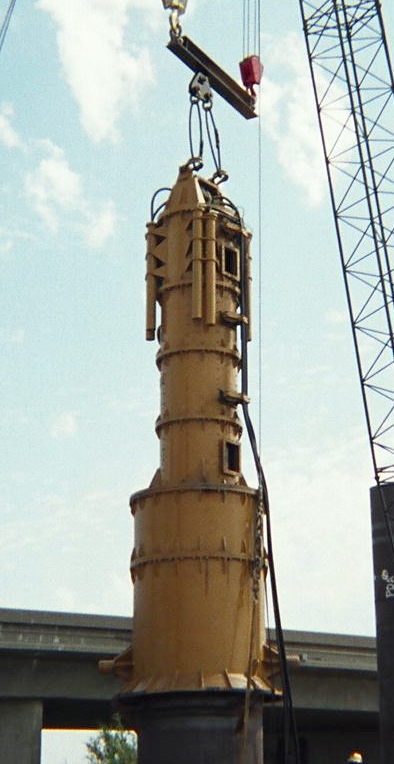

APE Model 60-6 Hydraulic Impact Hammer
| Product Documents |
|---|
|
Save PDF (Takes a Few Moments) Operating Manuals and Documents |
| Specifications | Standard | Metric |
|---|---|---|
| Ram Weight | 120,000 lbs | 54,431.08 kg |
| Rated Energy | 750,000 ft-lbs | 1,016.86 kNm |
| Stroke at Rated Energy | 72 in | 182.88 cm |
| Blows per Minute | 30-65 min-max | |
| Weight without Insert | Varies w/ Pile Size | Varies w/ Pile Size |
| Height | 480 in | 1,219.2 cm |
| Standard Lead Size | Offshore | |
Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
