American Piledriving Equipment Inc.

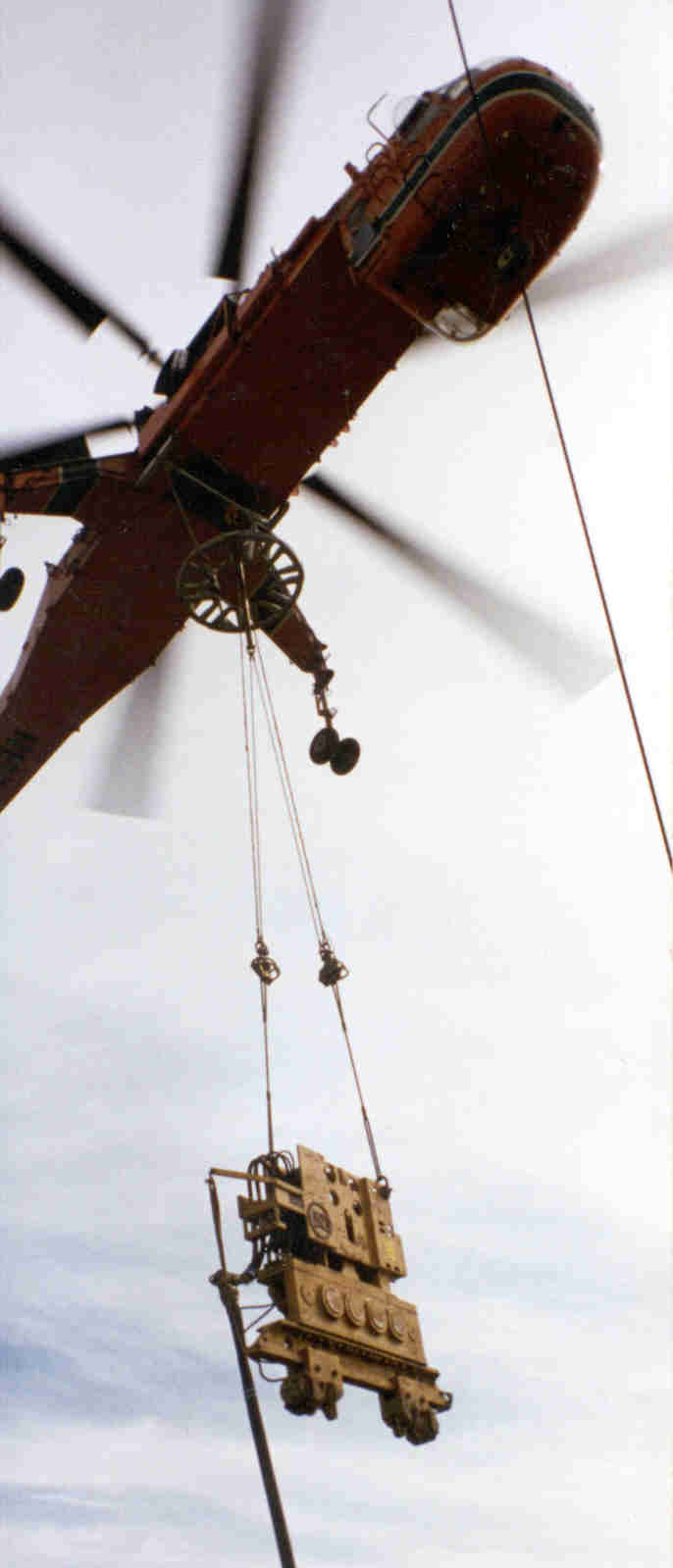

Model 200T Vibratory Driver/Extractor with Model 700 Power Unit

Rifle-bored top plate delivers oil to motors without using hoses
Patented one piece helical gear/eccentric eliminates gearbox failures caused by broken pins, keys, bolts or splines found in all other vibro gearboxes
Giant double roller spherical bearings for super long life
Center safety pin shows the line load on pile and cranes

Advance, profit generating features that are years ahead of the competition:

Patented multistage suppressor design reduces vibro weight and height while increasing line pull by 100%.
Vibro will not shake the crane line or boom even during vibro "starting" and "stopping."
Center safety pin shows pile crew and crane operator how much line pull is on pile and crane.
Only vibro on market with detachable suppressor housings to fit any height and weight requirements.
One piece helical gear/eccentric eliminates keyways, pins, splines, and bolts inside the gearbox.
Heavy metal enhanced eccentric design reduces internal parts by up to 75% while increasing dynamic force.
Giant spherical bearings allow for batter operations without damage and reduce heat for extremely long life.
Computer designed gearbox is perfectly balanced with lowest center of gravity on the market.
Rifle bored top plate eliminates all hoses on suppressor and to hydraulic motors. Mechanic's dream come true.
Heavy duty clamp cylinder is machined from one piece of solid steel to eliminate o-rings and bolt-on guards.
Power unit comes standard with spare hydraulic tank, tool kit, dual controls on pendant and control panel.
Very simple open loop hydraulic system with highest quality valves with lighted indicators.
Variable flow in both directions for use on drills, winches, hydraulic hammers, and other attachments.
Oversized radiator and hydraulic oil cooler with proven performance in the heat of Saudi Arabia.

Vibro Specifications:

Eccentric moment	6003 kg-cm (5200 in-lbs)
Frequency (variable)	0-1650 vpm
Driving Force @ 1650 vpm	1788 kN (201 US tons)
Amplitude	32 mm (1.28")
Maximum line pull	1335 kN (150 US tons)
Suspended Weight ( with universal clamp)	6304 kg (13,900 lbs)
Length	256 cm (101")
Width throat	35 cm (14")
Width at widest point	43 cm (17")
Height (with 223 kN (30 ton) short suppressor & clamp)	153 cm (60")
Height (with 1335 kN ( 150 ton) suppressor & 200 clamp)	238 cm (94")
Hydraulic hose length (standard)	46 meters (150 ft)
Hydraulic hose weight	680 kg (1500 lbs)

Power Unit Specifications: (Model 700)
