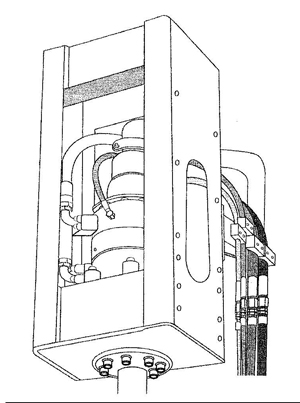

J&M Model 760 Top Drive Auger
| Product Documents |
|---|
|
Save PDF (Takes a Few Moments) Operating Manuals and Documents |
| Specifications | Standard | Metric | |
|---|---|---|---|
| Low Speed High Torque |
Torque | Single Speed | Single Speed |
| Max Pressure | Single Speed | Single Speed | |
| Rotation Speed | Single Speed | ||
| Max Flow | Single Speed | Single Speed | |
| Max Horse Power | Single Speed | Single Speed | |
| High Speed Low Torque |
Torque | 1,556 ft-lbs per 1000 psi | 215.12 kgm per 69 bar |
| Max Pressure | 4,500 psi | 310.26 bar | |
| Rotation Speed | 75 rpm | ||
| Max Flow | 60 gpm @ 0.8 gal / rev | 227 lpm @ 3.03 lit / rev | |
| Max Horse Power | 157 hp | 117.07 kW | |
| Crowd Force | 20,000 lbs | 9,071.85 kg | |
| Suspended Weight | 1,400 lbs | 635.03 kg | |
| Depth | 17 in | 431.8 cm | |
| Width (Lead Section) | 20 in | 508 cm | |
| Shipping Width (Overall) | in | cm | |
| Height | 46 in | 1,168.4 cm | |
| ID of Output Shaft | 2.5 in | 63.5 cm | |
| ID of Rotary Joint | Consult Factory | Consult Factory | |
| Adapters | API 3 inch | ||
| Lead Adapters | 8 x 20, 8 x 26 | ||
| HORSEPOWER = | FLOW(gpm) x PRESSURE(psi) |
| 1714 |
| FLOW(gpm) = | HORSEPOWER x 1714 |
| PRESSURE(psi) |
| PRESSURE(psi) = | HORSEPOWER x 1714 |
| FLOW(gpm) |
Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
