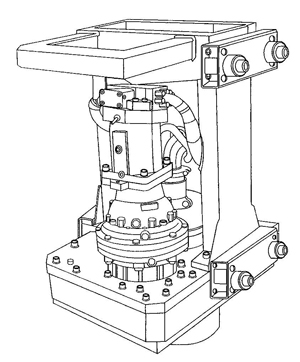

J&M Model 3060 Top Drive Auger
| Product Documents |
|---|
|
Save PDF (Takes a Few Moments) Operating Manuals and Documents |
| Specifications | Standard | Metric | |
|---|---|---|---|
| Low Speed High Torque |
Torque | Single Speed | Single Speed |
| Max Pressure | Single Speed | Single Speed | |
| Rotation Speed | Single Speed | ||
| Max Flow | Single Speed | Single Speed | |
| Max Horse Power | Single Speed | Single Speed | |
| High Speed Low Torque |
Torque | 6,667 ft-lbs per 1000 psi | 921.75 kgm per 69 bar |
| Max Pressure | 4,500 psi | 310.26 bar | |
| Rotation Speed | 60 rpm | ||
| Max Flow | 168 gpm @ 2.24 gal / rev | 636 lpm @ 8.48 lit / rev | |
| Max Horse Power | 343 hp | 255.78 kW | |
| Crowd Force | 35,000 lbs | 15,875.73 kg | |
| Suspended Weight | 3,000 lbs | 1,360.78 kg | |
| Depth | 38 in | 965.2 cm | |
| Width (Lead Section) | 26 in | 660.4 cm | |
| Shipping Width (Overall) | in | cm | |
| Height | 52 in | 1,320.8 cm | |
| ID of Output Shaft | 4 in | 101.6 cm | |
| ID of Rotary Joint | 3 in | 76.2 cm | |
| Adapters | API 3 inch, API 4 inch | ||
| Lead Adapters | 8 x 26, 8 x 32 | ||
| HORSEPOWER = | FLOW(gpm) x PRESSURE(psi) |
| 1714 |
| FLOW(gpm) = | HORSEPOWER x 1714 |
| PRESSURE(psi) |
| PRESSURE(psi) = | HORSEPOWER x 1714 |
| FLOW(gpm) |
Specifications may vary due to site conditions, specific hammer conditions or product set up. Specifications may change without notice.
Consult the factory for details on any specific product (800) 248-8498.
