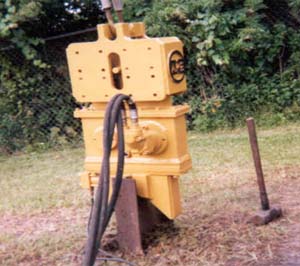

Model 3 Vibratory Driver/Extractor
with Model 10 Power Unit

• It weights 600lbs (272 kg) with the suppressor and 220lbs (100 kg) without.
• The Model 3 is specifically designed for driving plastic Sheet Piles.
• The model 3 is designed to operate off any backhoe.
• Patented one piece helical gear/eccentric eliminates gearbox failures caused by broken pins, keys, bolts or splines found in all other vibro gearboxes.

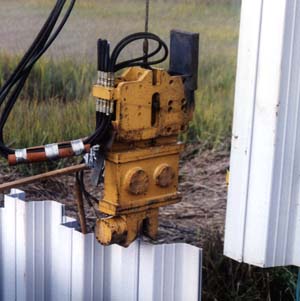

• Perfect for driving and extracting plastic and light weight sheets or piles.
• High strength clamp ensures maximum grip without damaging sheets.

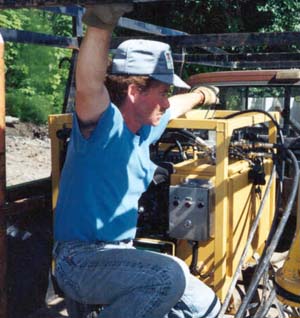

• APE Model 14 Power Unit comes in gas or diesel power.

• Can mount and operate off backhoe for situations where crane use is not preferable.
• Center safety pin shows pile crew how much line pull is on pile.
• Only vibro on market with detachable suppressor housings to fit any height and weight requirements.
• One piece helical gear/eccentric eliminates keyways, pins, splines, and bolts inside the gearbox.
• Two eccentric weights deliver 26.68 kN (3 US Tons) of driving force.
• The Model 3 can be operated under water. (Consult factory for depth and submersion time limitations).
• Computer designed gearbox is perfectly balanced with lowest center of gravity on the market.
• Removable top plate allows easy access to the bearings and gears for maintenance.
• High strength clamp ensures maximum grip without damaging plastic and light weight sheets and piles.
• Because of low height, the Model 3 is perfect for usage in tight and covered areas.
• Small enough to be transported in the back of a pickup or the trunk of a car.

Note: APE manufactures clamp attachments for all types of piling including Geoguard vinyl sheet piling, aluminum sheet piling, fiber glass sheet piles, and small diameter pipe piles. See attachment literature for more details or call APE.
