Model 6 Vibratory Driver/Extractor

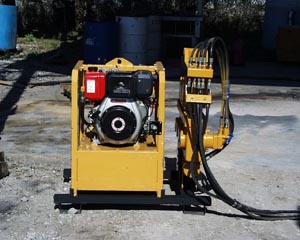

with Model 10 Power Unit

• For Driving and extracting plastic sheet piles.
• Weighs just 660 lbs and can be reduced to 380 lbs.
• For Driving and extracting plastic sheet piles.

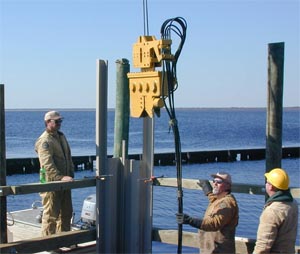

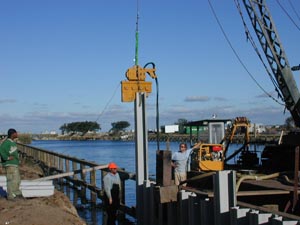

• Model 6 Vibro driving plastic sheets.
• The Model 6 is designed to operate off any backhoe.
• Patented one piece helical gear/eccentric eliminates gearbox failures caused by broken pins, keys, bolts or splines found in all other vibro gearboxes.
• Perfect for driving and extracting plastic and light weight sheets or piles.
• High strength clamp ensures maximum grip without damaging sheets.

• Can mount and operate off backhoe for situations where crane use is not preferable.
• Center safety pin shows pile crew how much line pull is on pile.
• Only vibro on market with detachable suppressor housings to fit any height and weight requirements.
• One piece helical gear/eccentric eliminates keyways, pins, splines, and bolts inside the gearbox.
• Two eccentric weights deliver 54 kN (6 US Tons) of driving force.
• The Model 6 can be operated under water. (Consult factory for depth and submersion time limitations).
• Computer designed gearbox is perfectly balanced with lowest center of gravity on the market.
• Twice the eccentric moment of our popular Model 3 vibro. All internal parts are interchangeable with Model 3.
• High strength clamp ensures maximum grip without damaging plastic and light weight sheets and piles.
• Because of low height, the Model 6 is perfect for usage in tight and covered areas.
• Small enough to be transported in the back of a pickup

Note: APE can help with hydraulic flow calculations for contractors wishing to mount the vibro directly to the excavator.
